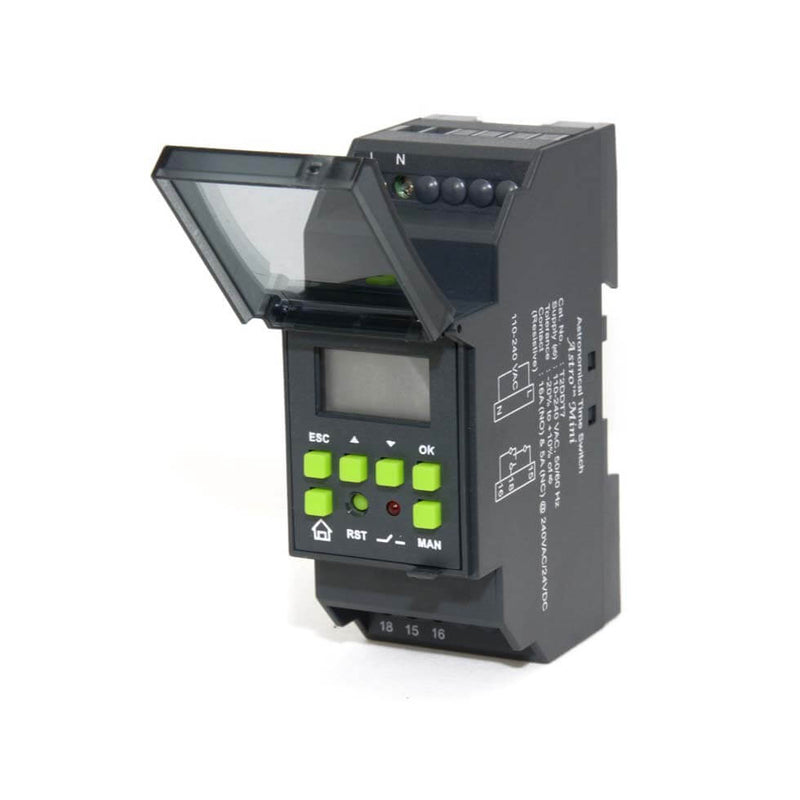

Astronomical Time Switch T2DDT7

SKU: T2DDT7

£62

Excluding VAT. Shipping calculated at checkout.

Product Features:

  • Supply Voltage 110 - 240 VAC
  • Supply Variation (-20% to +10%)
  • Frequency 50/60 Hz
  • Power Consumption 6 VA
  • Programming Based on Latitude/Longitude precise to the minute with time zone
  • Trigger Modes Sunrise/Sunset or Twilight Rise/Set
  • Offset 1 min to 10 hr 59min (Programmable)
  • OFF Hours Programmable
  • Weekly Off User Defined
  • DST User Defined
  • A number of operating modes 3. Description: AUTO - As per user-defined program settings. ON AUTO - Instant ON up to next Auto Event. AUTO-OFF. - Instant OFF up to next Auto Event.
  • Minimum Switching Time 1min
  • Display 3 Lines Text  LCD
  • Clock Accuracy +/- 2 s/day max. over the operating temperature range
  • Power Reserve from Factory 6 years
  • Output - Relay Output 1C/O
  • Output - Contact Rating 16A (For`NO') 7 (For `NC') @ 240 VAC / 24 VDC (Resistive), Inductive (cos 0 = 0-.6) :- 6 A @ 250 VAC
  • Output Electrical Life 3 x 10
  • Output Mechanical life 5 x 10
  • Utilization Category AC - 15 Rated Voltage (Ue): 120/240 V, Rated Current (Ie): 3/1.5 A
  • Utilization Category DC - 13 Rated Voltage (Ue):24/125/250 V, Rated Current (Ie): 2.0/0.22/0.11 A
  • Operating Temperature -10deg to +55deg
  • Storage Temperature -10deg to +60deg
  • Humidity (Non Condensing) 95% (Rh)
  • Led Indication Red Led - Relay ON
  • Enclosure Flame Retardant UL94 - V0
  • Dimension (W x H x D) (in mm)
  • Weight (unpacked) 110g
  • Mounting Base / DIN rail

T2DDT7 is ideal for Outdoor and Street lighting applications with easy manual override and keypad lock features. It also boasts 6 years battery reserve with a 12/24 hour display format.

Click Here For Product Datasheet
