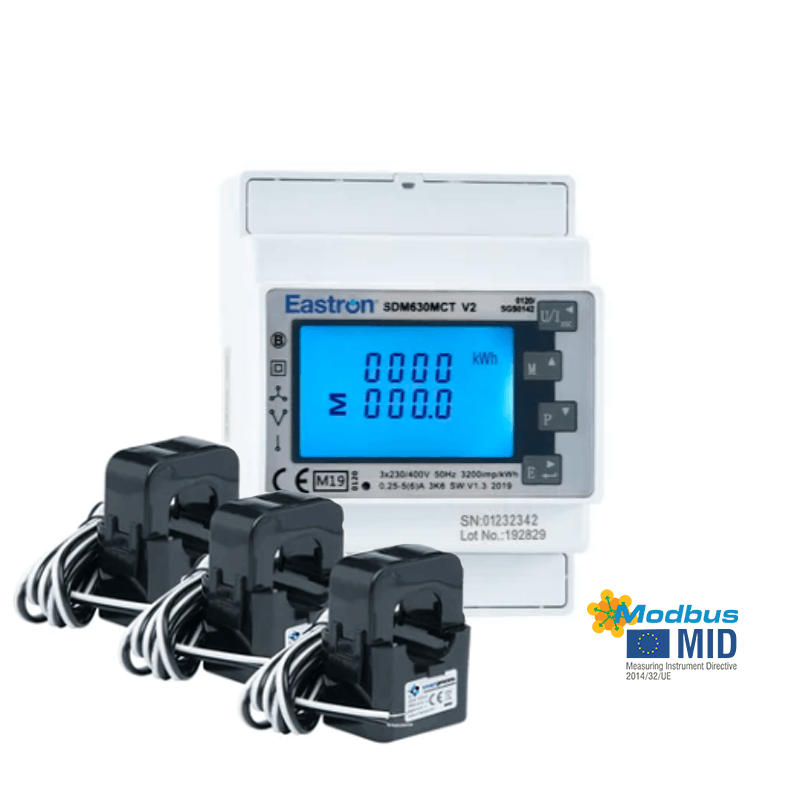

Bundle: SDM630MCTE-MID & 3x T36 Split Core Current Transformers

SKU: SDM630MCTE-3x-T36-300/5A

£181 £201

Excluding VAT. Shipping calculated at checkout.

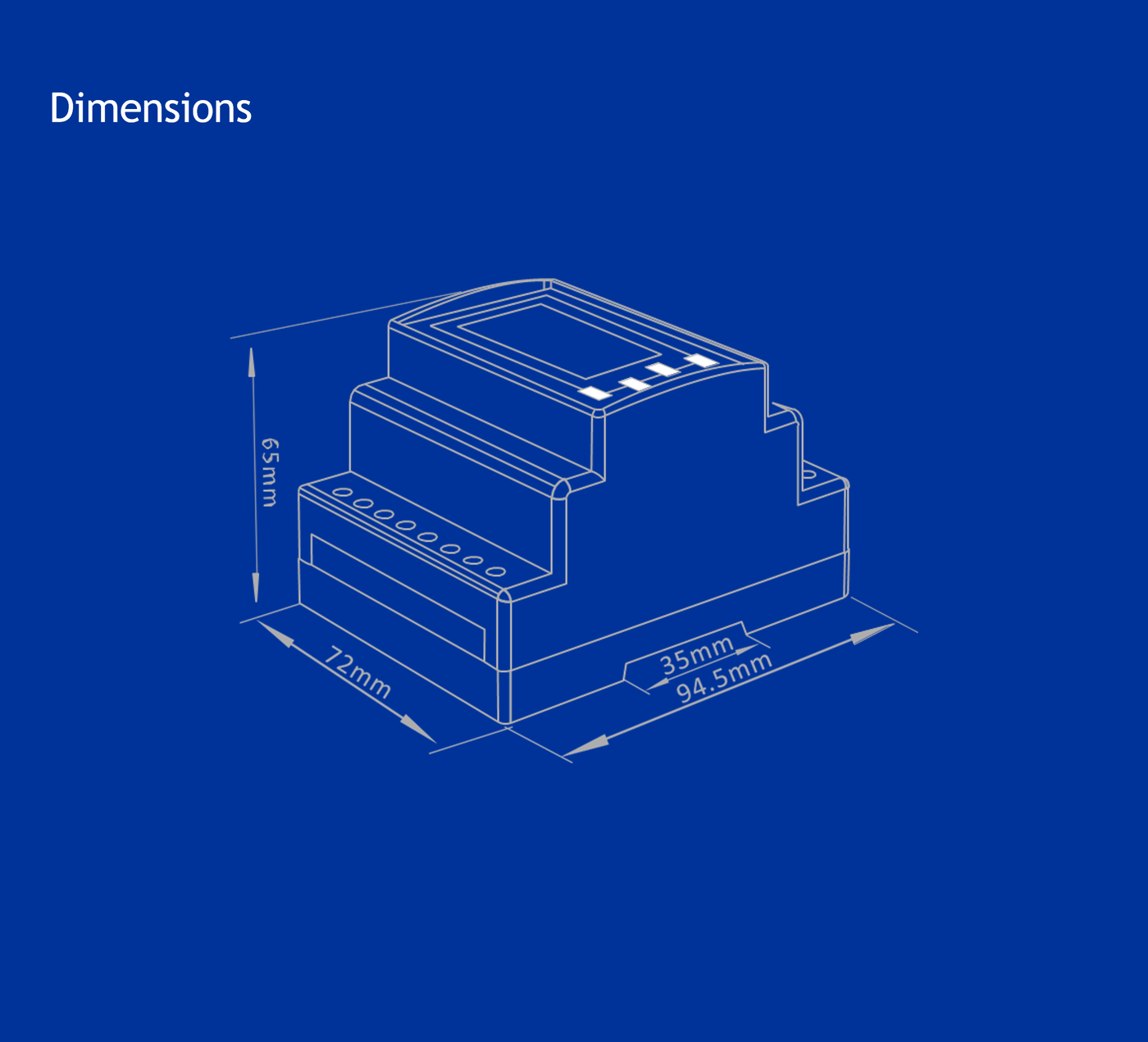

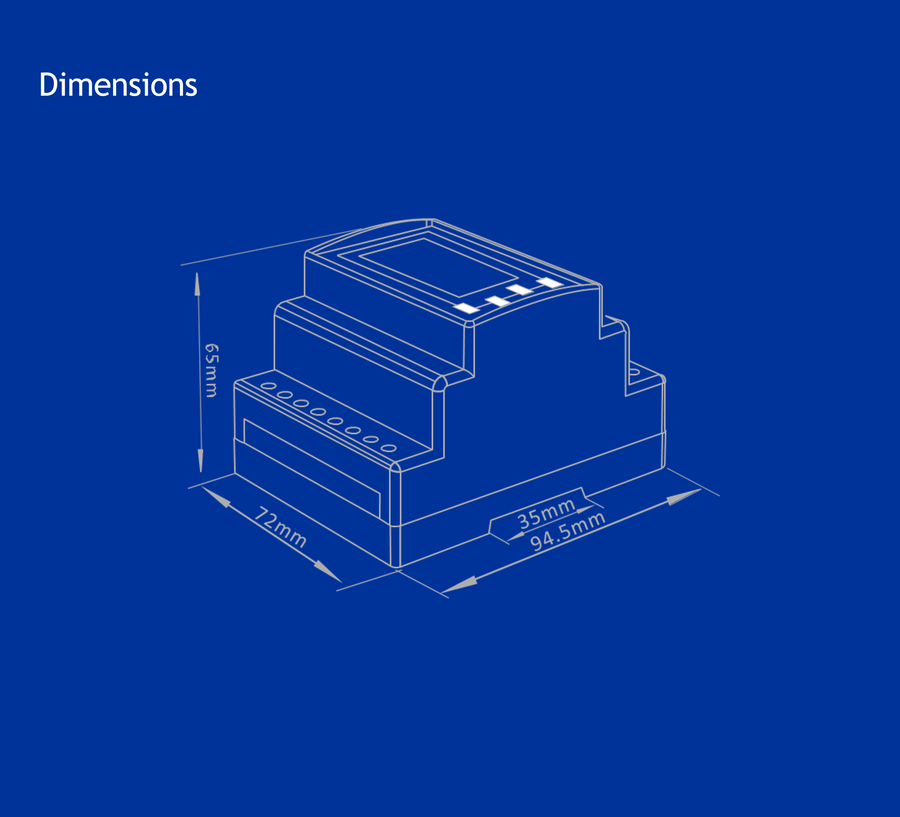

Meter Information

  • MID B&D Approved - 0120/SGS0150
  • Single Phase (1P2W) or Three Phase (3P4W)
  • Multifunction Meter (16 different parameters)
  • CT Operated (1A or 5A secondary - settable)
  • 230/400V AC
  • RS485 Modbus RTU
  • Dual Pulse Outputs built-in
  • 4-DIN Module
  • Digital Backlit Display
  • Touch Screen Buttons

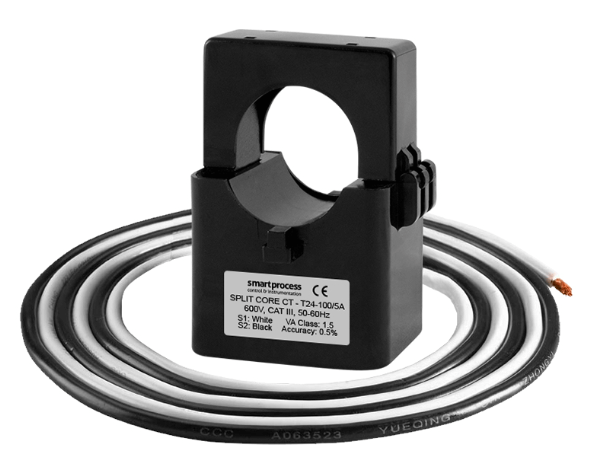

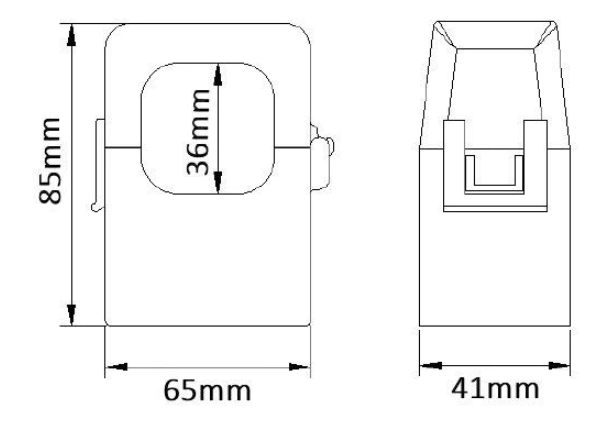

CT Information

  • Split Core
  • Single Phase
  • 36mm² Aperture
  • 300-600A Primary Current
  • 5A Secondary Current
  • 1m Fly Lead (2.5mm Wire)
  • Accuracy Class 1

Meter Details:

Click Here For Product Datasheet

Click Here For User Manual

Click Here For Product Protocol

CT Details:

Click Here For Product Datasheet
