Product Features:

  • Single Phase 100A Direct connect
  • Multifunction measurement, display scroll-able settings
  • Support AMR, SCADA system
  • Prepaid RFID Card function
  • Energy re-settable
  • White backlit LCD display
  • Din rail mounting 35mm
  • RS485 Modbus communication

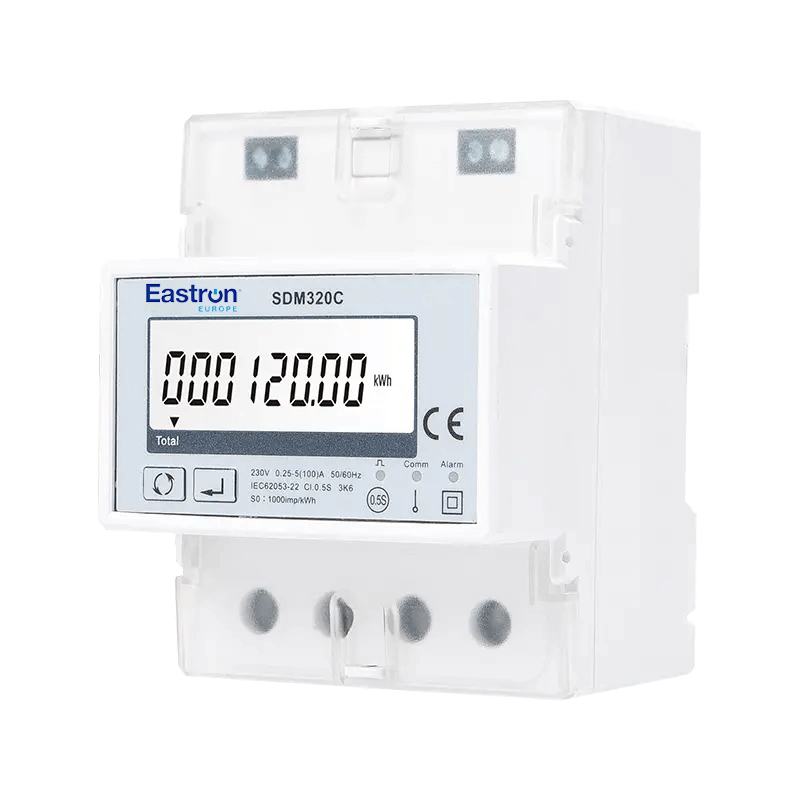

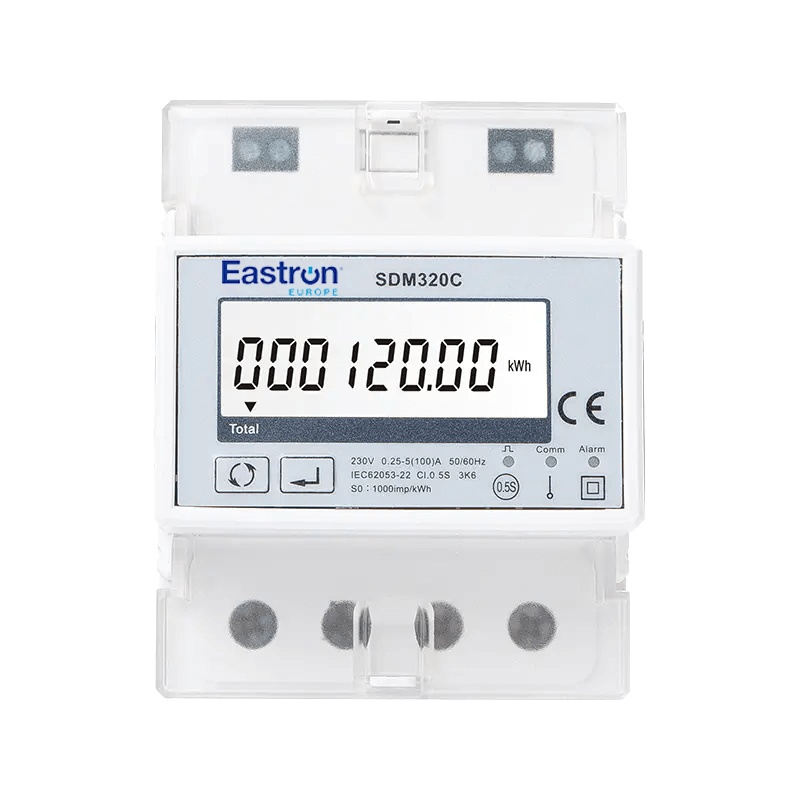

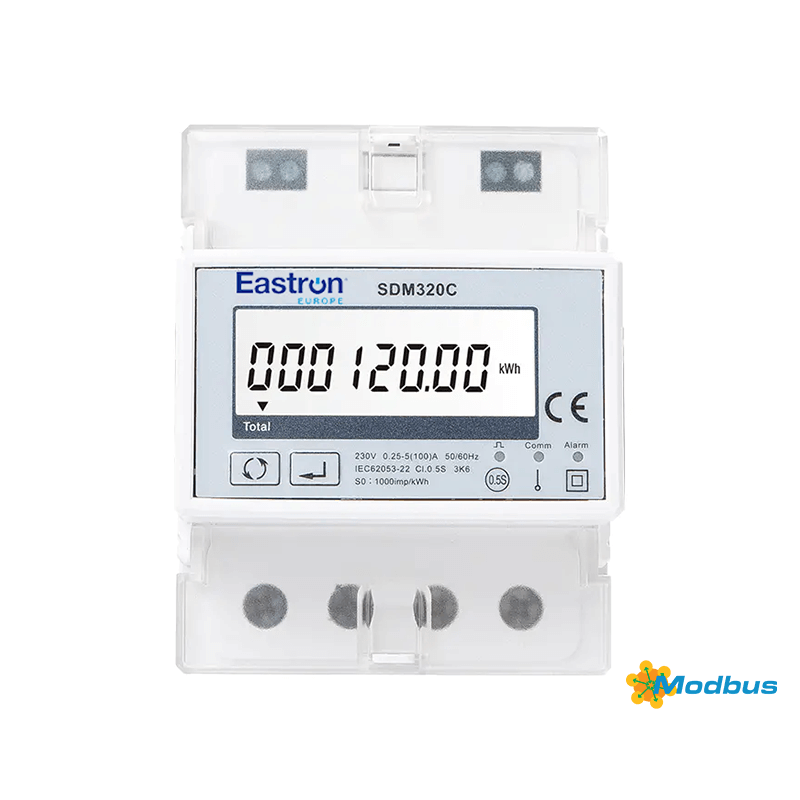

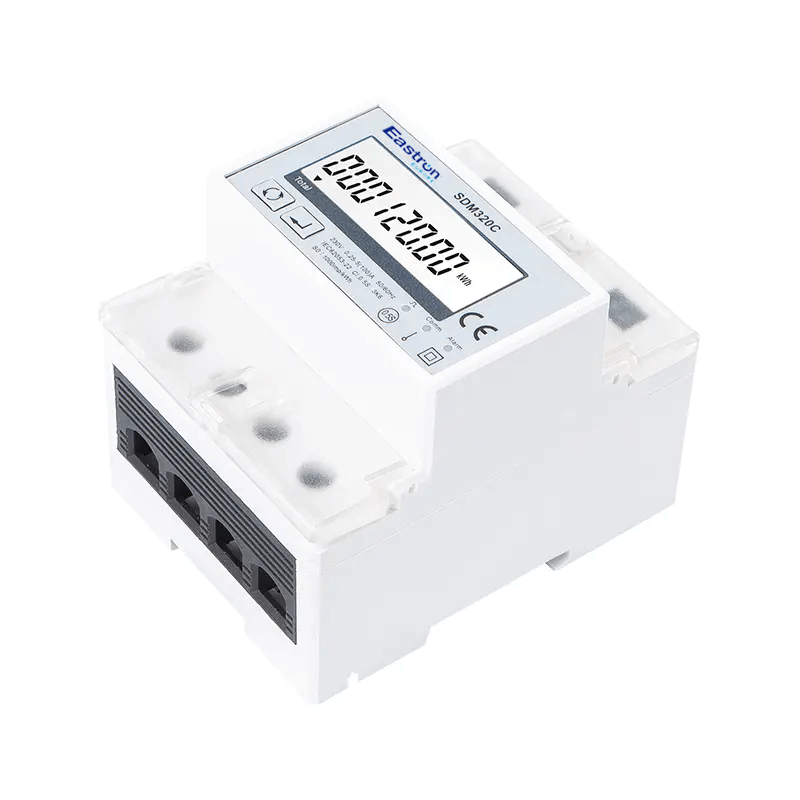

SDM320C is a single phase din rail remote control multi-function energy meter with built-in relay.

 It measures all important electrical parameters, such as Active Energy (kWh), Current (A), Voltage (V), Frequency(Hz), Power Factor, Power Demand, import and export energy etc. It fully complies with the 0.5S level accuracy technical requirements of the IEC62053-22 standard.

With built-in relay inside, the meter can be remotely controlled to turn on or off the electricity supply via RS485.
