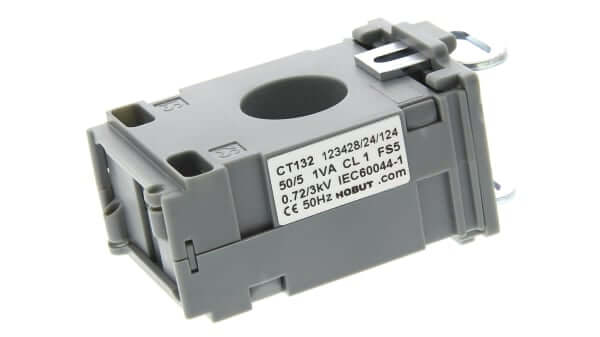

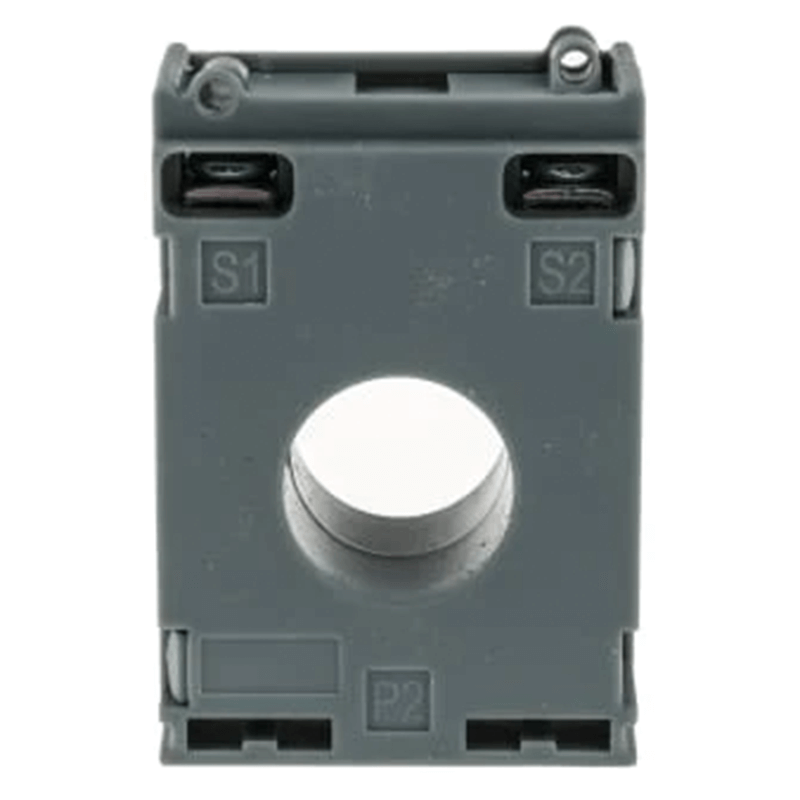

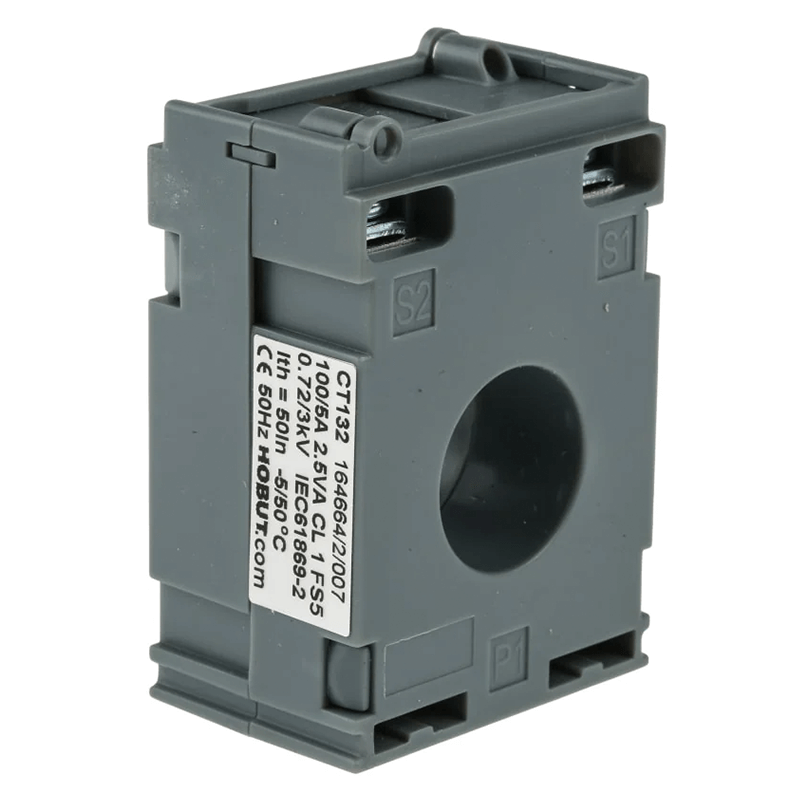

CT132 Single Phase Solid Core Current Transformer (40-300A)

SKU: CT132-40/5A


Shipping calculated at checkout.

Product Features:

  • can take cables up to 21mm² diameter
  • 30mm x 10mm Busbar Aperture
  • 25mm x 15mm Busbar Aperture
  • 20mm x 20mm Busbar Aperture
  • 40-300A Primary Current
  • 5A Secondary Current
  • Secondary M4 Screw Terminals
  • Accuracy Class 0.5, 1 or 3

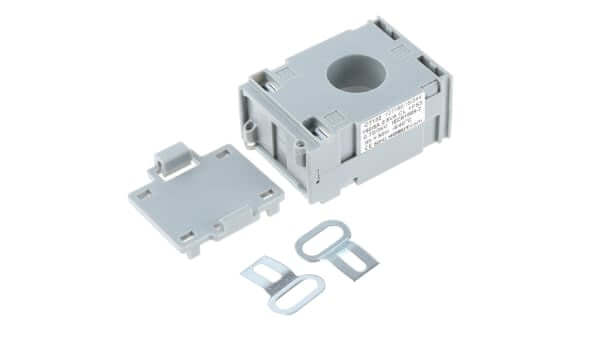

  • Busbar or DIN Rail Mounted

The CT132 is a range of Solid Core Current Transformers which work in conjunction with any 5A CT Operated Electricity Meters. You can use individual CT132's CTs for Single Phase applications, you can also use 3pcs for Three Phase applications. The Aperture on this model accommodates 25mm² Cable, as well as 30mm x 10mm, 25mm x 15mm & 20mm x 20mm Busbar. The CT132 is ideal for applications such as Distribution systems, Generator sets, Control Panels and Switchgear.
