Iskra

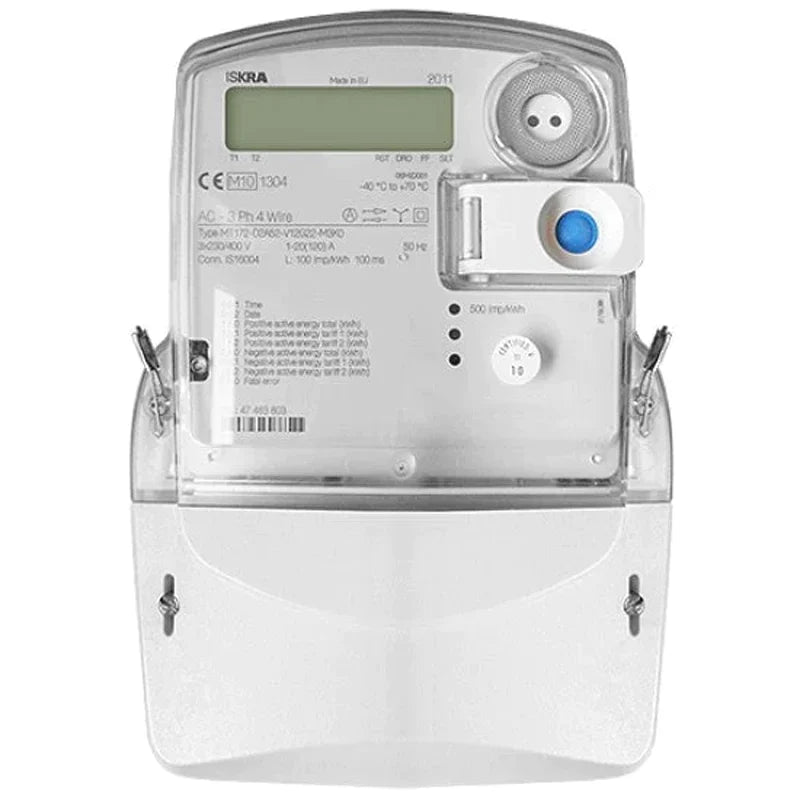

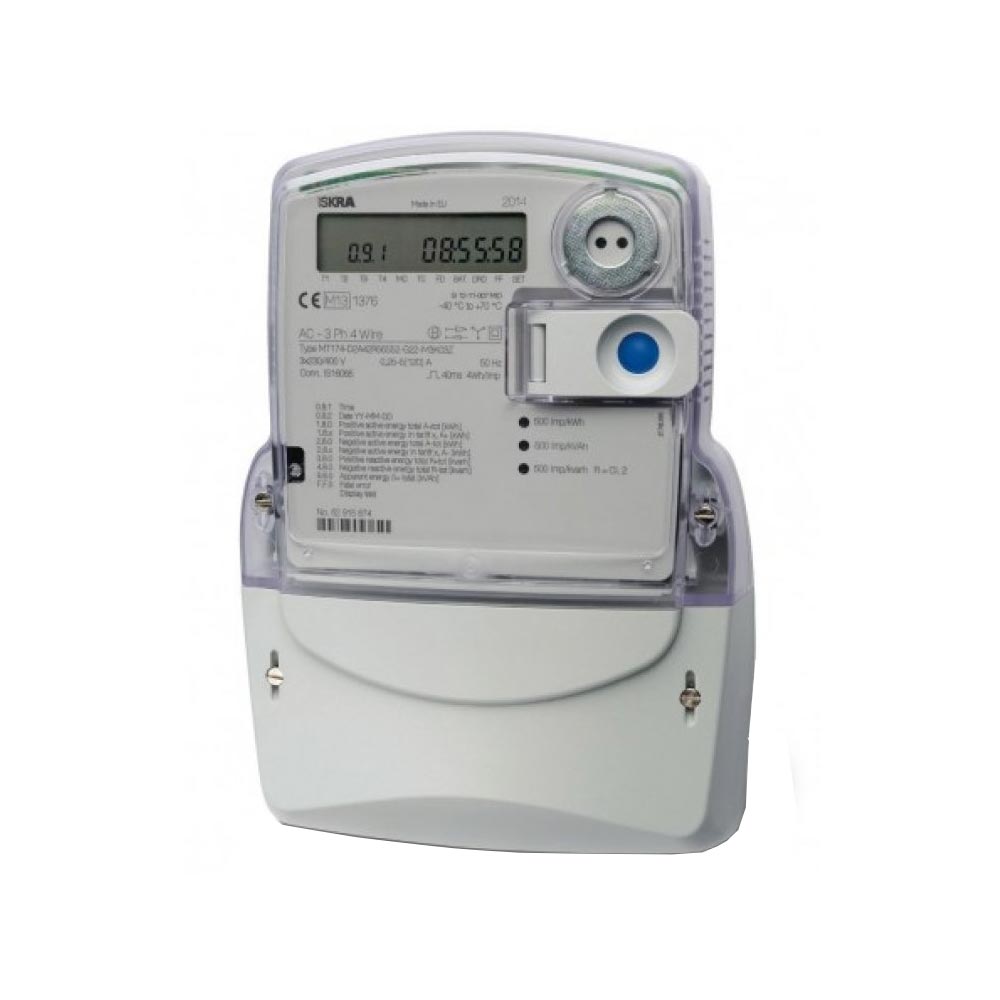

Iskra MT174 Three Phase Direct Connected Meter
SKU: MT174 -1
Excluding VAT. Shipping calculated at checkout.
All programming must be done before dispatch
The Iskra MT174 is one of the most cost effective and versatile three phase meters on the market and can be configured to show a number of different electrical parameters to suit a wide variety of applications. These include billing for consumption, measuring imported and exported energy on renewable installations, logging dual rate readings for tariff’s such as Economy 7 as well as measuring most of the common electrical parameters such as Energy (kWh), Power (W), Current (I) & Voltage (V) to name just a few.
Equipped with a pulse output functionality, this meter allows for customization with various pulse lengths and periods, providing flexibility in data monitoring and integration with external systems.
For added convenience, this meter can be pre-programmed prior to dispatch using our dedicated software. Simply specify your desired settings in your order note, such as dual rate times or pulse output duration and frequency. This meter cannot be programmed on site.
Key Features:
- Extended terminal cover included
- Economy 7 Tariff capabilities (c\w internal time switch)
- Settable Multi-Tariffs (up to 4)
- Fully MID and OFGEM approved
- Pulsed outputs
- Optical port for configuration or meter reading
- Class B (1%)
Technical Data:
- Nominal Voltage: 3 x 230V
- Voltage withstand: 400V continuously
- Maximum Current (Imax): 125A
- Meter Phase: Three Phase
- Protection: IP54
- Polyphase connection
