M3N1-25 Three Phase Current Transformer (60-160A)/5A

SKU: M3N1-25


Shipping calculated at checkout.

Product Features:

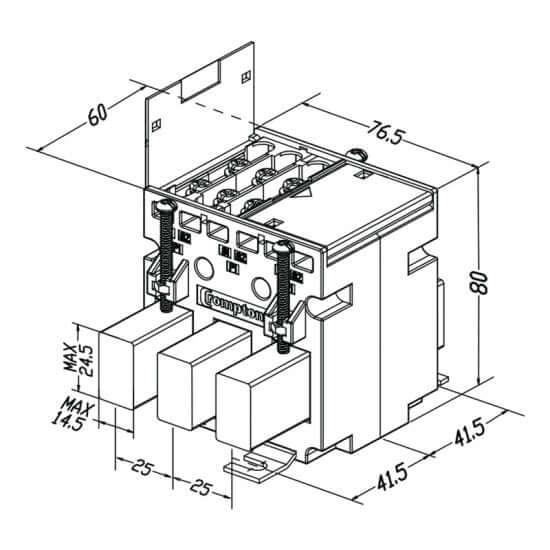

  • 14.5mm x 24.5mm Aperture
  • 60-160A Primary Current
  • 5A Secondary Current
  • Secondary M4 Screw Terminals
  • Accuracy Class 0.5, 1 or 3
  • Busbar or DIN Rail Mounted

The M3N1 Range of 3-in-1 Current Transformers from Crompton Instruments combines three traditional Current Transformers into one molded case. These can be directly installed in line with a three-phase molded case circuit breaker, saving installation time and taking up less space than three individual CTs. The M3N1-25 is ideal for applications such as Distribution systems, Generator sets, Control Panels and Switchgear.
