Multifunction Electronic Timer 1CMDTO

SKU: 1CMDTO

£26

Shipping calculated at checkout.

Product Features:

  • Functions: (1) Signal ON delay (2) Cyclic ON/OFF (3) Cyclic OFF/ON (4) Signal OFF Delay (5) Signal OFF/ON (6) Accumulative Delay on Signal (7) Impulse ON/OFF (8) Leading Edge Impulse (9) Trailing Edge Impulse (10) Leading Edge Bi-stable
  • Supply Voltage 12 - 240 VAC/DC
  • Supply Variation -15% to +10%
  • Frequency 50/60Hz
  • Power Consumption (Max.) 2VA
  • Timing Range 0.1s to 100h
  • Reset Time 200 ms (Max)
  • Relay Output 1 C/0
  • Contact Rating 6A @ 240 VAC / 5A @ 24 VDC (Resistive)
  • Operating Temperature -10deg to +60deg
  • Storage Temperature -15deg to +70deg
  • LED Indication Green LED - Power ON, Yellow LED - Relay ON
  • Enclosure Flame Retardant UL94 - V0

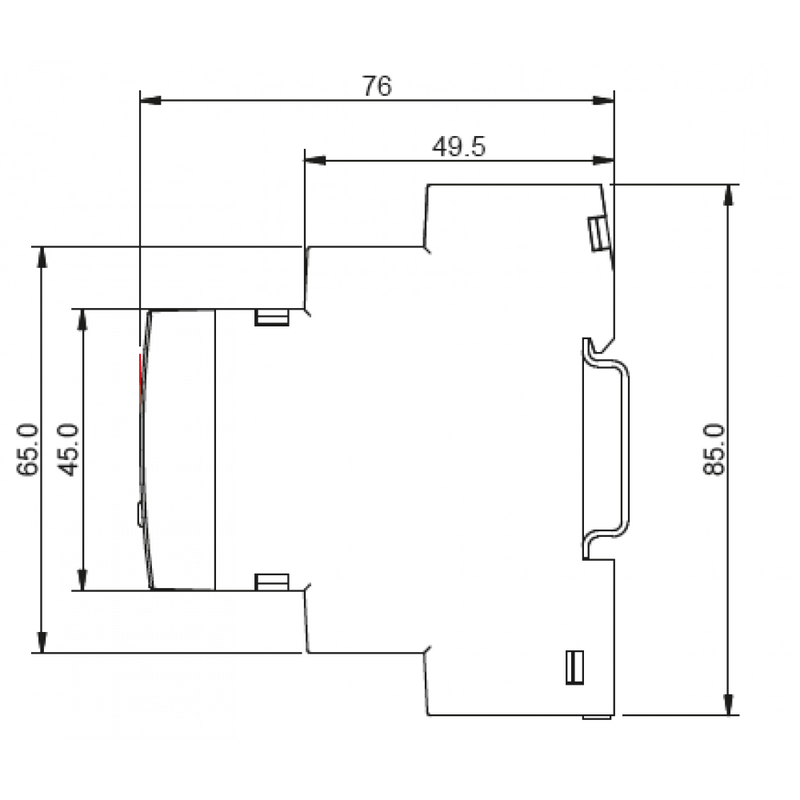

  • Dimension (W x H x D) ( in mm) 18 X 85 X 65
  • Weight  (unpacked) 70g
  • Mounting Base / DIN Rail

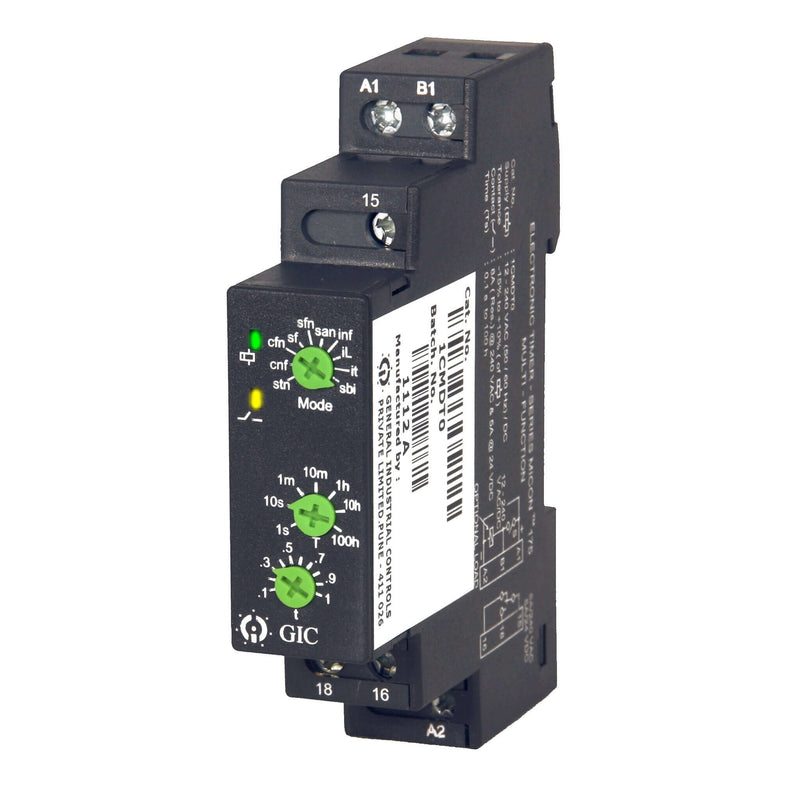

1CMDT0 is a multifunction electronic timer with 10 different non-signal and signal-based modes. It has a wide voltage range for both AC and DC. It is a low-powered consumption devise with led indications for power and relay status.

Click Here For Product Datasheet
