SC1 Split Core Current Transformer (100-400A) /5A

SKU: SC1-100/5A


Shipping calculated at checkout.


  • Split Core
  • Single Phase

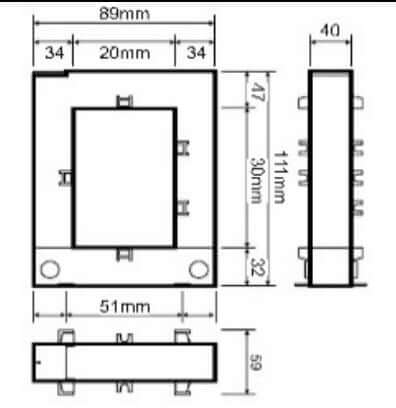

  • 20x30mm Aperture
  • 100-400A Primary Current
  • 5A Secondary Current
  • Accuracy Class 0.5
  • Foot or busbar mounted

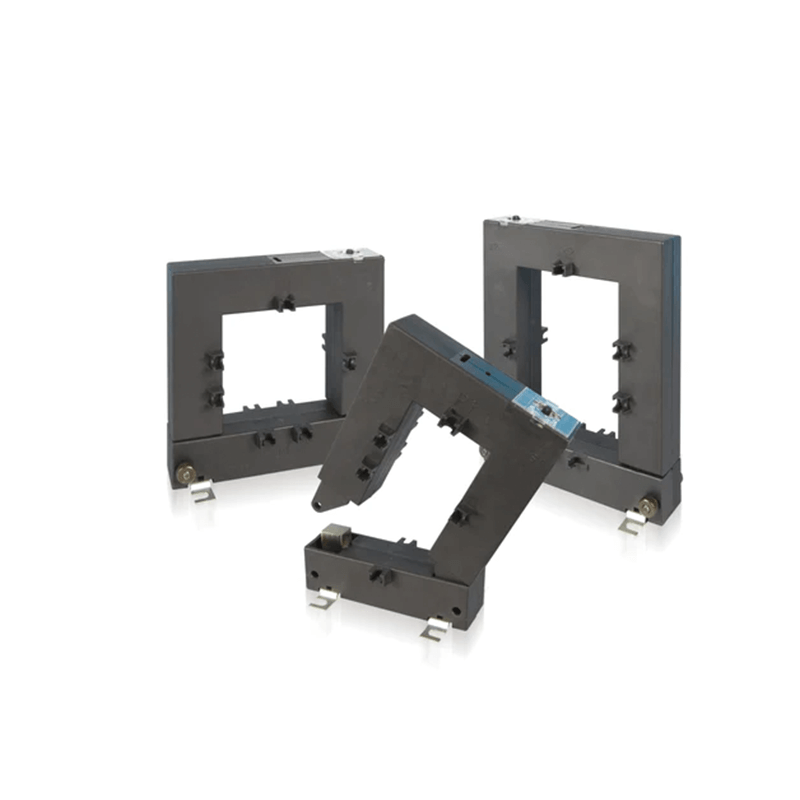

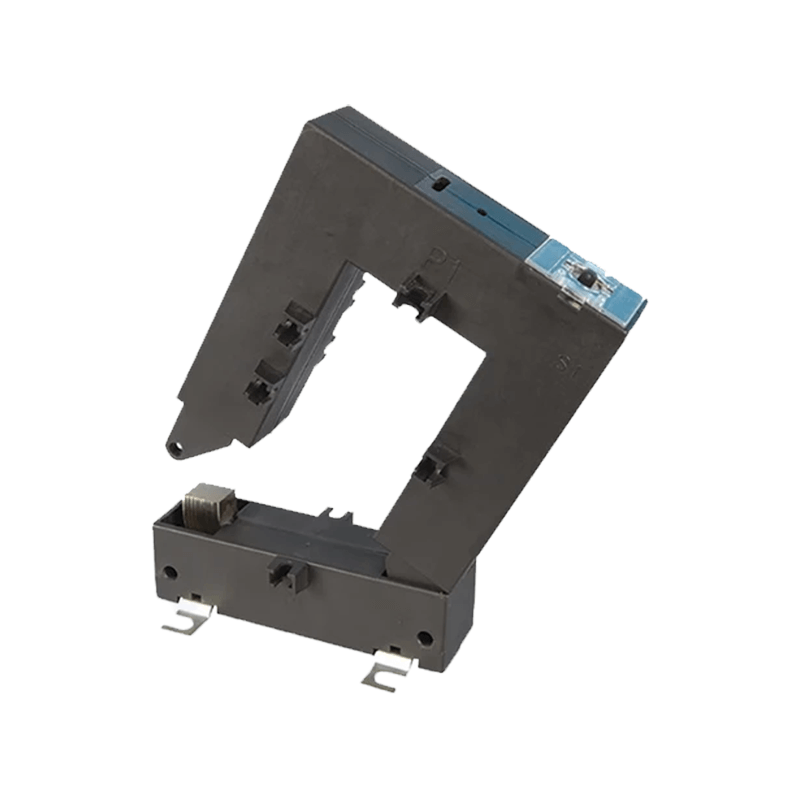

The SC1 is a split core current transformer that offers a cost effective and efficient method by which the current can be measured without the need to break the conductor, thereby reducing installation and commissioning time.

Click Here For Product Datasheet
