Current Transformer Sold Separately
Product Features:
- Single Phase 5A current transformer operated
- MID Certified (B and D)
- Bi-directional measurement for kW and kWh
- Configurable pulsed output (Import, Export, Nett kWh)
- RS485 Modbus Communications
- Multi Parameter measurements
- Simple set up and operation

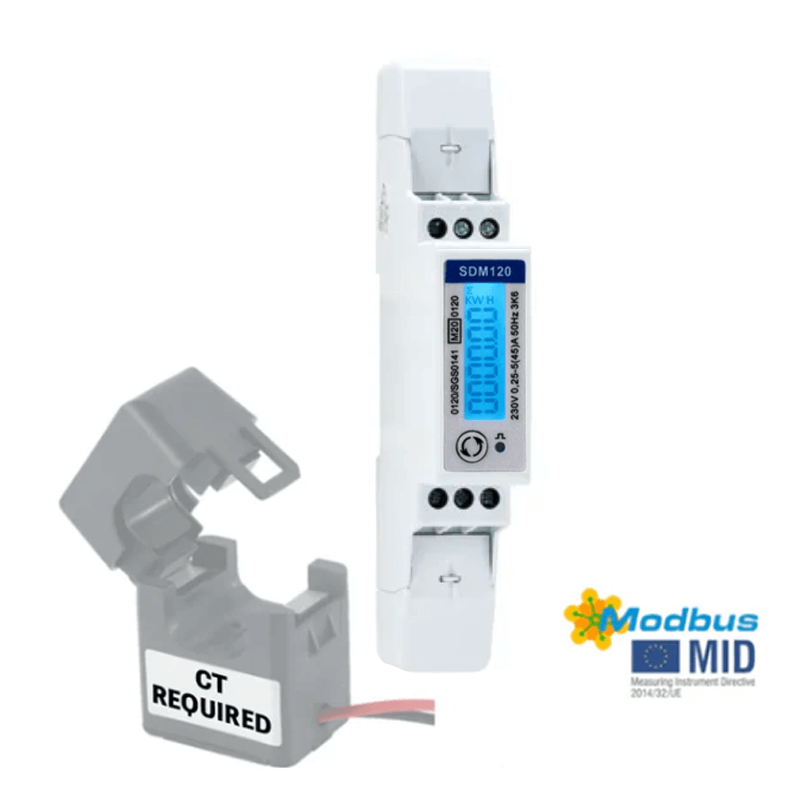

The SDM120CT energy-meter “with a white back-lighted LCD screen for prefect reading” are used to measure single-phase like residential, utility and Industrial application. The unit measures and displays various important electrical parameters, and provide an RS485 Modbus communication port for remote reading and monitoring. Bi-directional energy measurement makes the unit a good choice for solar PV energy metering. The compact design and din rail installation provides a easy and economical solution for your metering demand.

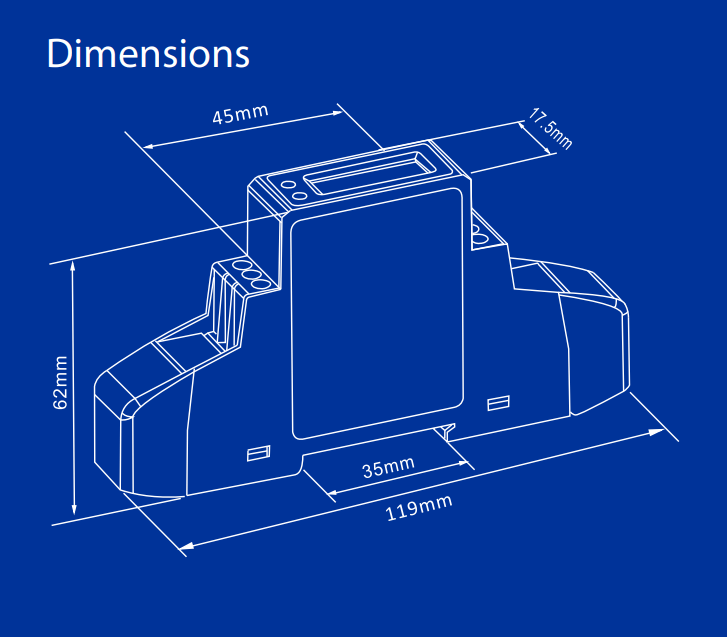

The SDM120CT-MID Approved Single Phase digital power meter works in conjunction with 5Amp Current Transformer. This meter has been MID B&D Certified by SGS UK, proving both its accuracy and quality. This certification allows this model to be used for any sub-billing applications and unlike other alternatives, this meter is housed in a 1 Module DIN rail case, meaning it takes up very little space.
Click Here For Product Datasheet
Click Here For User Manual
Click Here For Product Protocol
