Product Features:

  • MID B&D Approved - 0120/SGS0221
  • Single Phase (1P2W)
  • 45A AC (45A Direct Connected)
  • 230V AC
  • 1-DIN Module
  • Digital Display
  • Import Active Energy (kWh)

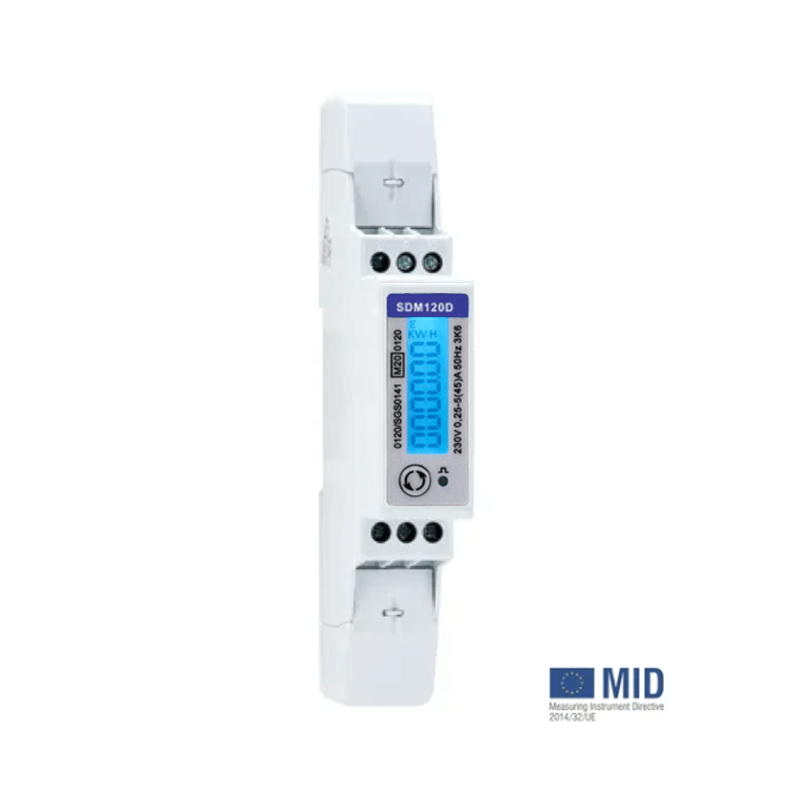

The SDM120D - MID is a Direct Connected (with pulsed output), Single-Phase MID electric energy with 5+1 digital LCD display (no backlight) for measuring kWh. The SDM120D uses an advanced special recording integrated circuit with high precision. It is used in AC single-phase watt-hour with is recording frequency of 50Hz, It is highly accurate, durable, reliable, low power consumptive, without reversion, creep-proof, anti-tamper-proof and bilateral recording with strong overloading capability. it conforms to the related requirements of GB/T17215 321-2008 and passes EMC and LVD in world famous labs.

The Only Difference Between the SDM120DB-MID and the SDM120D-MID is that the DB has a Backlit display meaning it's easier to read.

Click Here For Product Datasheet

Click Here For Product Protocol
