Product Features:

  • Single Phase (1P2W)
  • 45A AC (45A Direct Connected)
  • 230V AC
  • 1-DIN Module
  • Digital Backlit Display
  • Multi-functional parameters
  • Modbus (RS485)

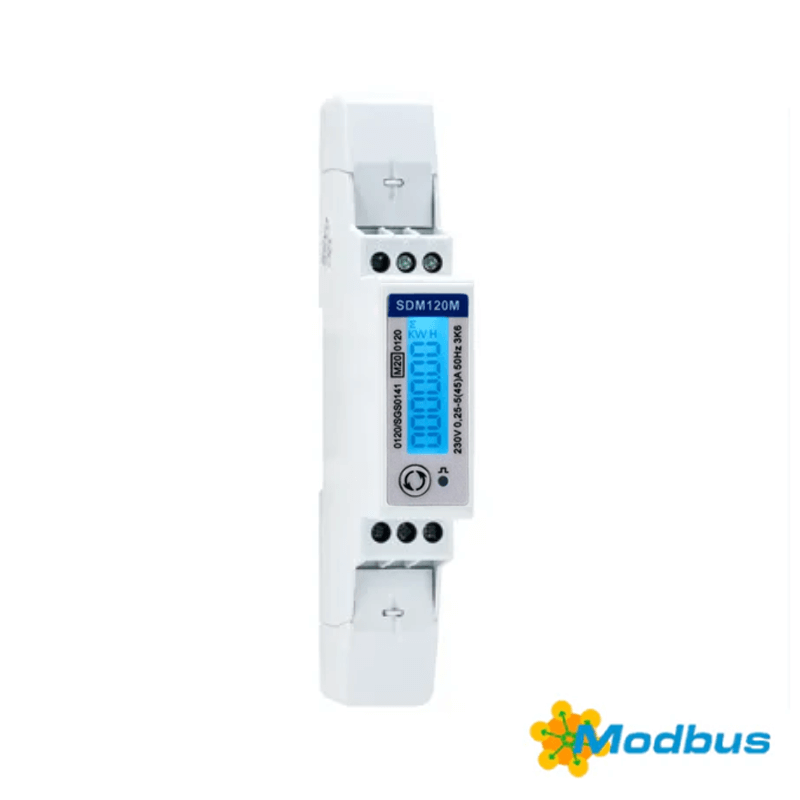

The SDM120M is a Single Phase Digital Power Meter that measures a range of parameters in a 45A AC Circuit, removing the need for additional current transformers. This particular meter has proven to be very popular due to how cost-effective it is. The SDM120 Series is housed in a 1-DIN (17.5mm) case meaning it is compact and space-saving. This is the non-MID approved version of the SDM120-MOD-MID.

Click here for product datasheet

Click Here For User Manual

Click Here For Product Protocol
