Eastron

SDM120-MBUS-MID

SKU: SDM120-MBUS-MID

£62

Excluding VAT. Shipping calculated at checkout.

Product Features:

  • MID B&D Approved - 0120/SGS0221
  • Single Phase (1P2W)
  • 45A AC (45A Direct Connected)
  • 230V AC
  • Mbus Communication
  • Dual Pulsed Outputs

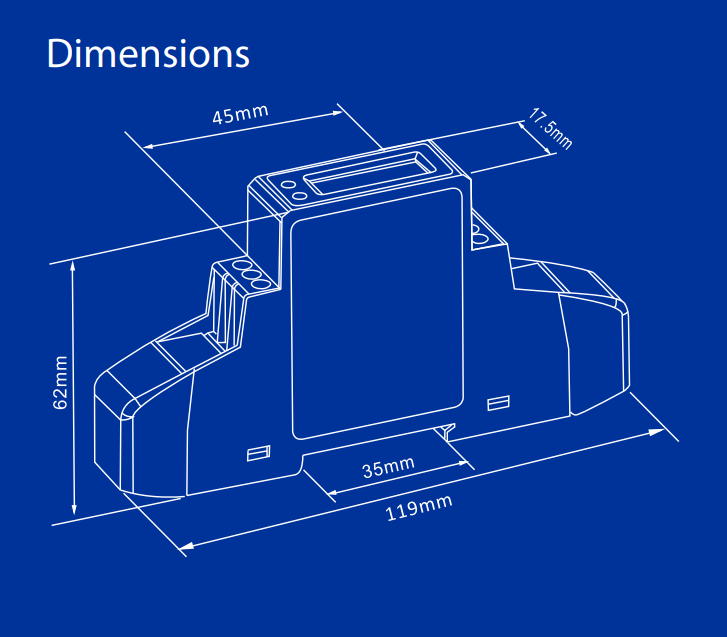

  • 1-DIN Module
  • Digital Backlit Display
  • Multi-functional parameters

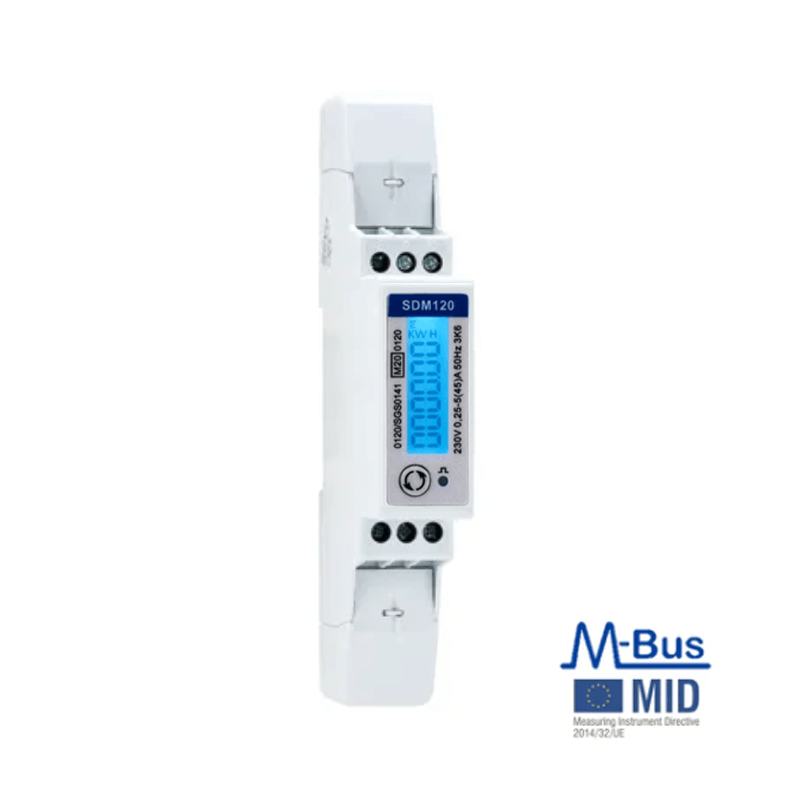

The SDM120-MBUS-MID is a Single Phase Digital Power Meter that measures a range of parameters in a 45A AC Circuit, removing the need for additional current transformers. This particular meter has proven to be very popular due to how cost-effective it is. Unlike other meters available on the market, this model has Pulse and MBUS communications built-in, eradicating the requirement of purchasing extra modules. The SDM120 Series is housed in a 1-DIN (17.5mm) case meaning it is compact and space-saving. This specific model measures Voltage, Current, Power Factor, Active Power, Reactive Power, Apparent Power, Total Active Energy, Import & Export Active Energy.

 We have invested in MID B&D certification for the SDM120-MBUS-MID, this proves the accuracy and quality of the product and allows it to be used for Billing Applications. Since April 2016, MID-approved Meters are the only legal option when the measurements are to be used for billing. All of our MID-approved meters are certified here in the UK.

Click Here For Product Datasheet

Click Here For User Manual

Click Here For Product Protocol
