This meter requires an external Timer Relay in order to read dual tariffs.
- MID B&D Approved - 0120/SGS0198
- Dual Tariff (Using External Timer Relay)
- Single Phase (1P2W)
- 100A AC
- 230V AC

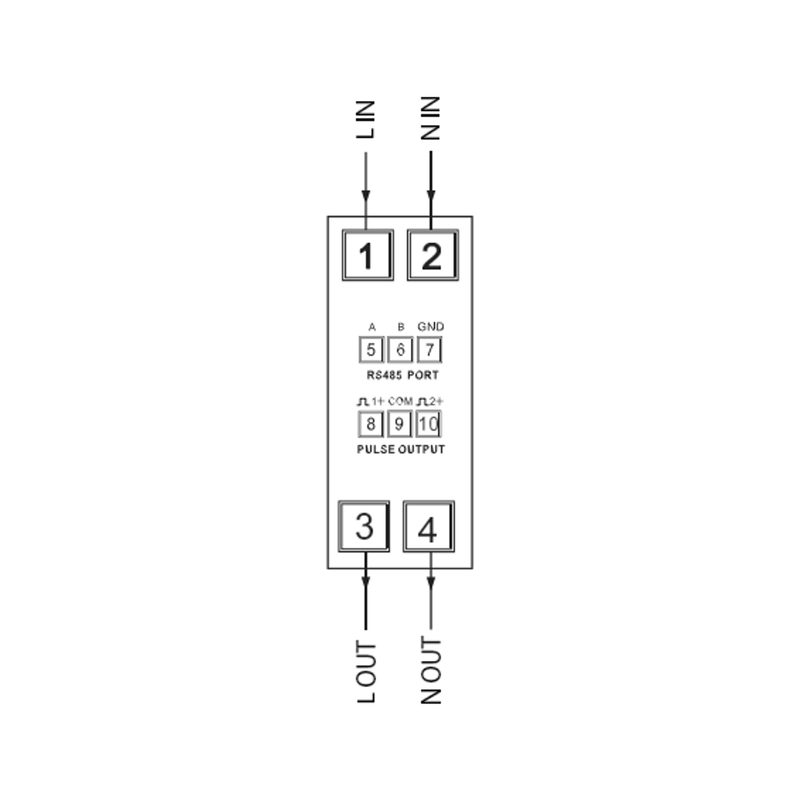

- RS485 Modbus RTU
- Dual Pulse Outputs

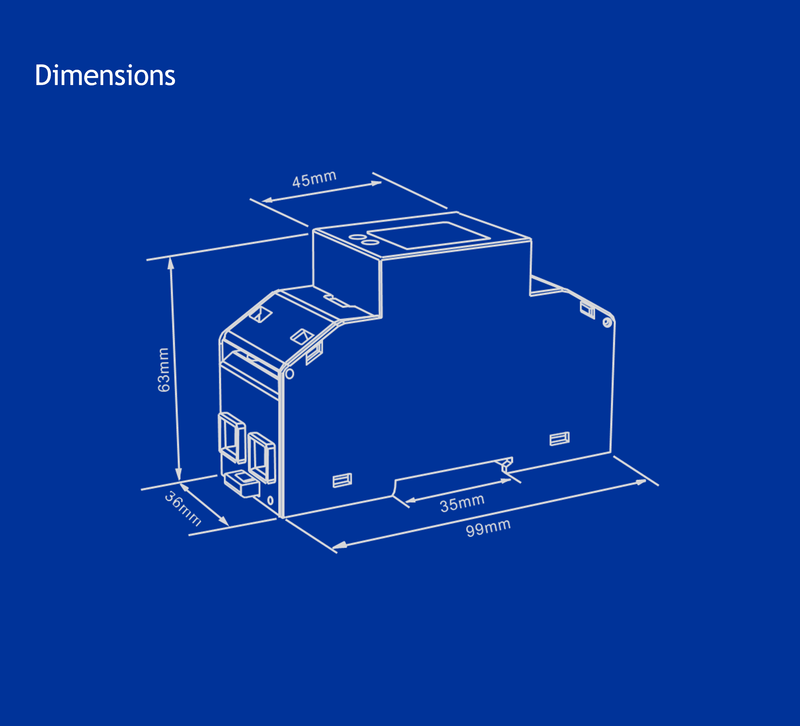

- 2-DIN Module
- Digital Backlit Display

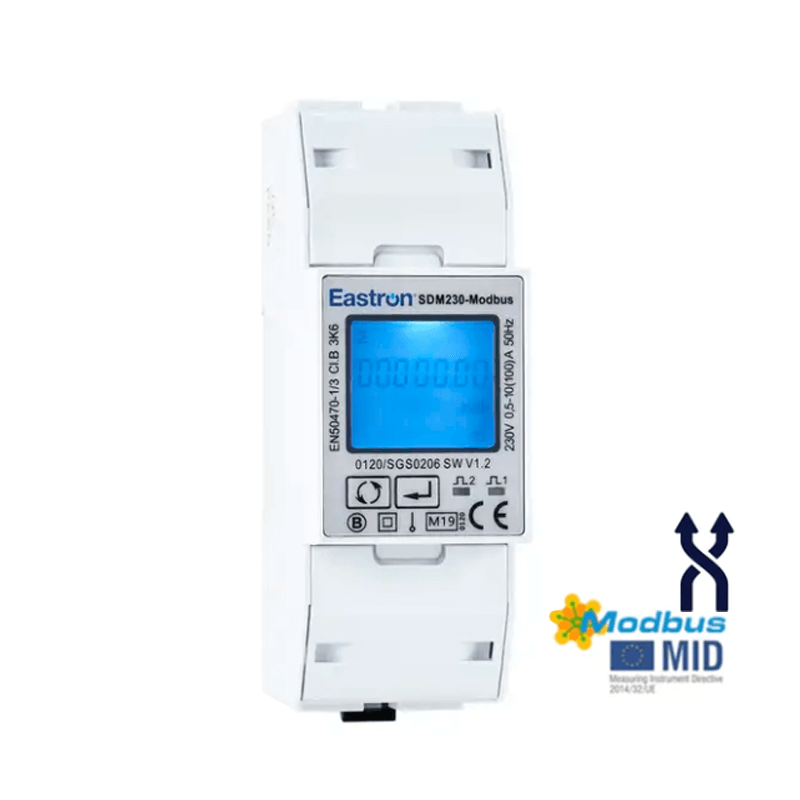

The SDM230-2T-MID is a Single Phase Digital Power Meter that is Dual Tariff. The meter measures a range of parameters in a 100A AC Circuit, removing the need for additional current transformers. This particular meter has proven to be very popular due to the detailed measurements it can provide, such as Power Factor, Max Demand Power & Hours Run. Unlike other meters available on the market, this model has Pulse and Modbus communications built in, eradicating the requirement of purchasing extra modules. The SDM230 Series is housed in a 2-DIN (36mm) case meaning it is compact and space-saving. This specific model measures Voltage, Current, Frequency, Power Factor, Max Demand Power, Active Power, Reactive Power, Apparent Power, Total Active Energy, Import & Export Active Energy, Total Reactive Energy, Import & Export Reactive Energy & Hours Run.
