Eastron

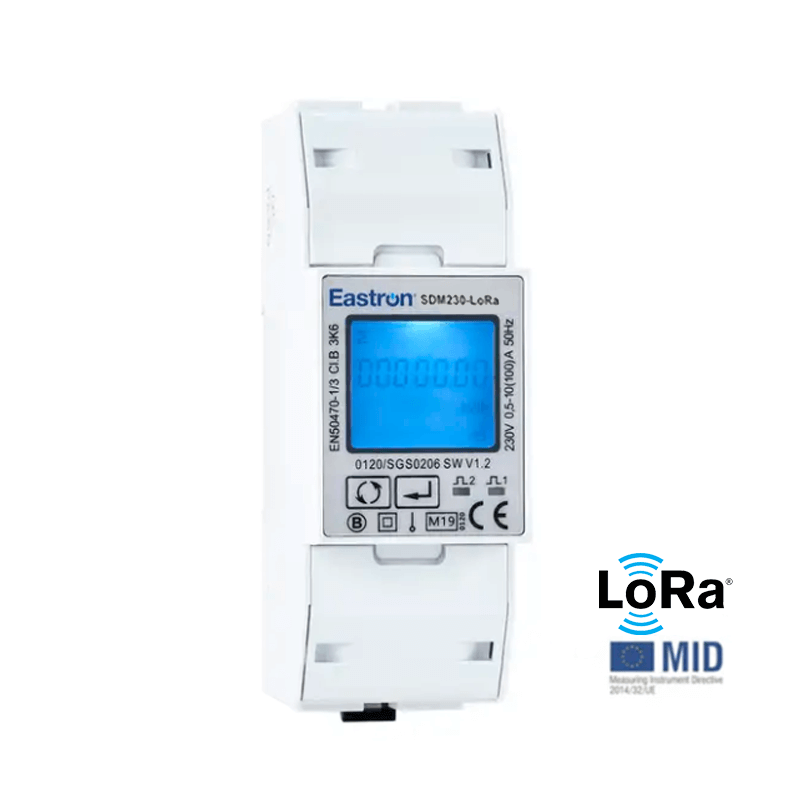

SDM230-LoRaWAN-MID

SKU: SDM230-LoRa

Excluding VAT. Shipping calculated at checkout.

Product Features:

  • MID Certified

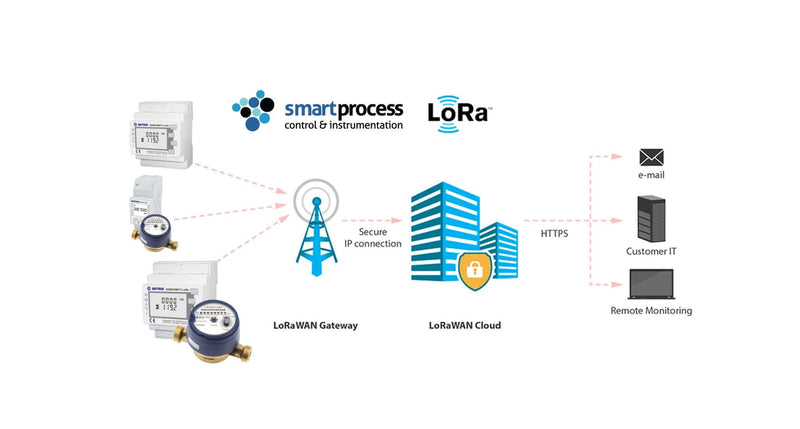

  • LoRaWAN EU868 for remote monitoring
  • Class 1.0 accuracy
  • Single phase
  • 100A Direct Connected

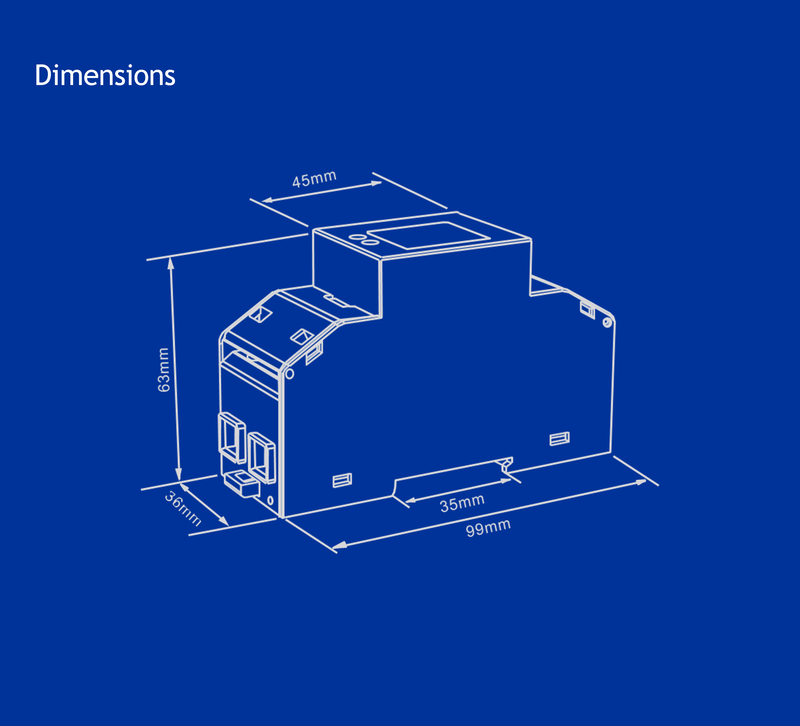

  • 2 Module DIN rail mounted
  • Highly visible backlit display
  • Simple menu navigation

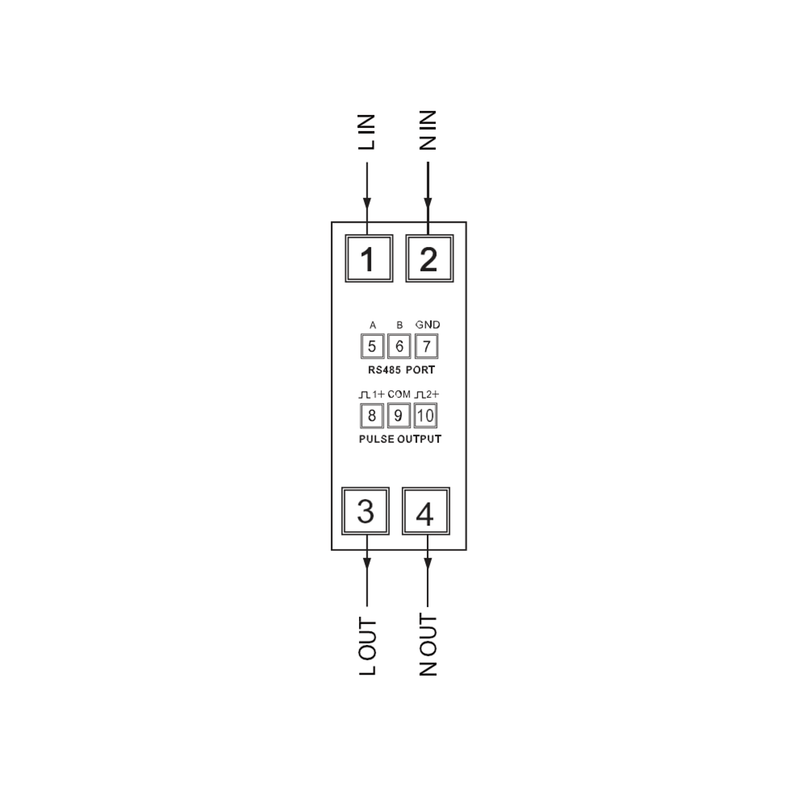

  • Built in Pulsed outputs, 1 x Fixed & 1 x Configurable

SDM230-Lora measures and displays the characteristics of single phase two wire(1p2w) supplies and has a built-in LoRaWAN module which allows long range wireless communication. Two pulse outputs are available for real time energy measurement. Some parameters include kWh, kVArh, kW, kVAr, kVA, PF, Frequency, Voltage, Current, dmd. THD etc. It support Max.100A direct connection, saving the cost to install external CTs. Maximum demand current can be measured over preset periods of up to 60 minutes.

Please get in touch for a personalised LoRaWAN solution to perfectly suit your project on 01268 773 422 or enquiry@smartprocess.co.uk

Click Here For Product Datasheet

Click Here For User Manual

Click Here For Product Protocol
