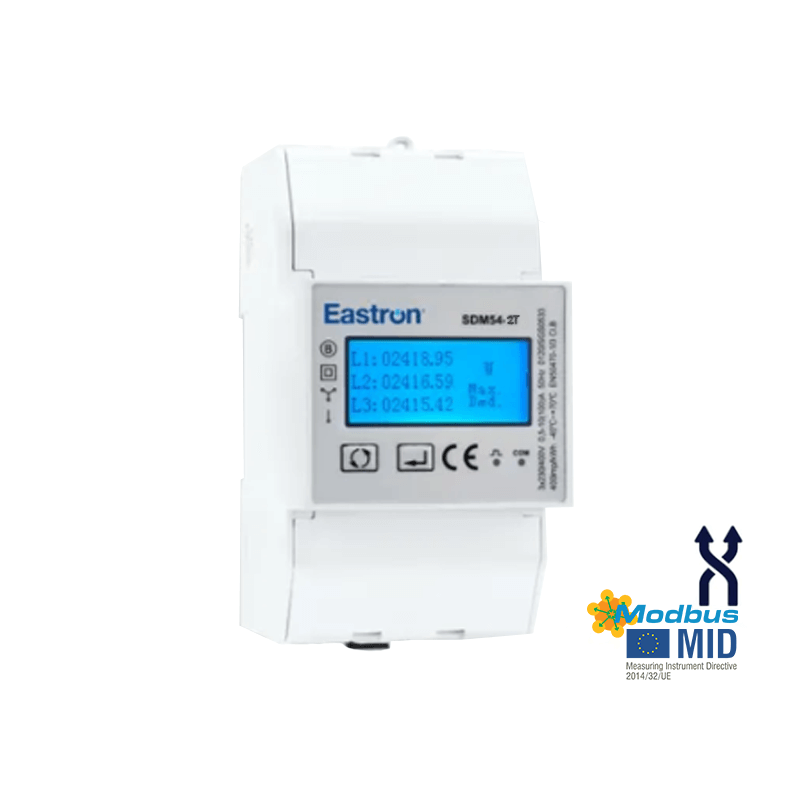

SDM54-2T-MID

SKU: SDM54-2T-MID

Excluding VAT. Shipping calculated at checkout.

Please get in touch for more info and pricing on this product on 01268 773 422 or enquiry@smartprocess.co.uk

Product Features:

  • Single or Three phase
  • 100A Direct Connected
  • MID B+D Certified
  • Class B Accuracy
  • Bi-Directional Measurement for Active Energy and Power
  • Configurable pulsed output (Import/ Export and Nett kWh)
  • RS485 Modbus Communication
  • Multi Parameter measurement
  • Dual Tariff

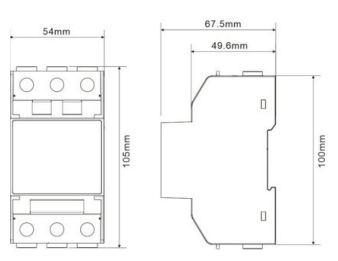

  • 3 Module DIN rail mounted

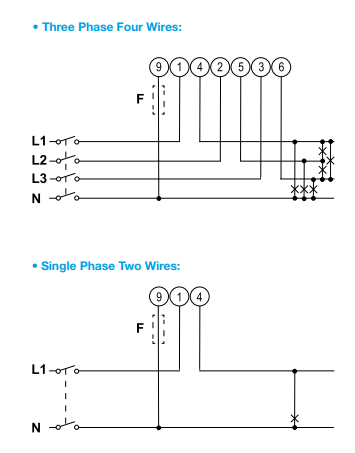

The SDM54 measures and displays the characteristics of single phase two wires (1p2w) and three phase four wires (3p4w) supplies, including voltage, frequency, current, power, power factor, active and reactive energy, imported or exported. Energy is measured in terms of kWh and kVArh. Maximum demand on power and current can be measured over pre-set periods of up to 60 minutes. The SDM54 supports max.100A direct loads per phase, with dual tariff management options available. The meter is designed for DIN-rail mounting, housed in a 3 DIN module case, with IP51 front protection. The meter is optionally equipped with pulse outputs, RS485 Modbus port or M-bus port. Configuration can also be done via keypad, which is password protected.

Click Here For Product Datasheet

Click Here For User Manual

Click Here For Product Protocol
