Eastron

SDM630-MBUS-MID

SKU: SDM630Mbus-MID

£115

Product Features:

  • MID B&D Approved

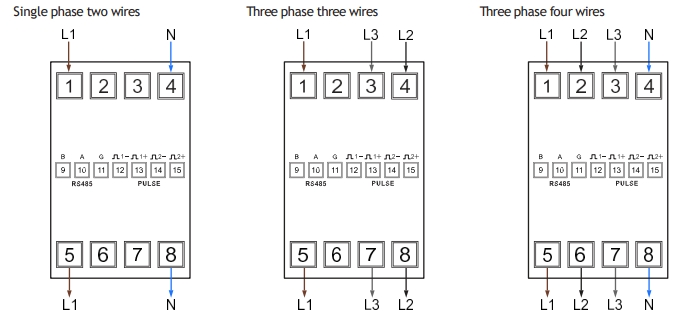

  • Single Phase (1P2W) or Three Phase (3P3W or 3P4W)
  • Multifunction
  • 100A AC
  • 230/400V AC
  • Mbus Communication
  • Dual Pulse Outputs

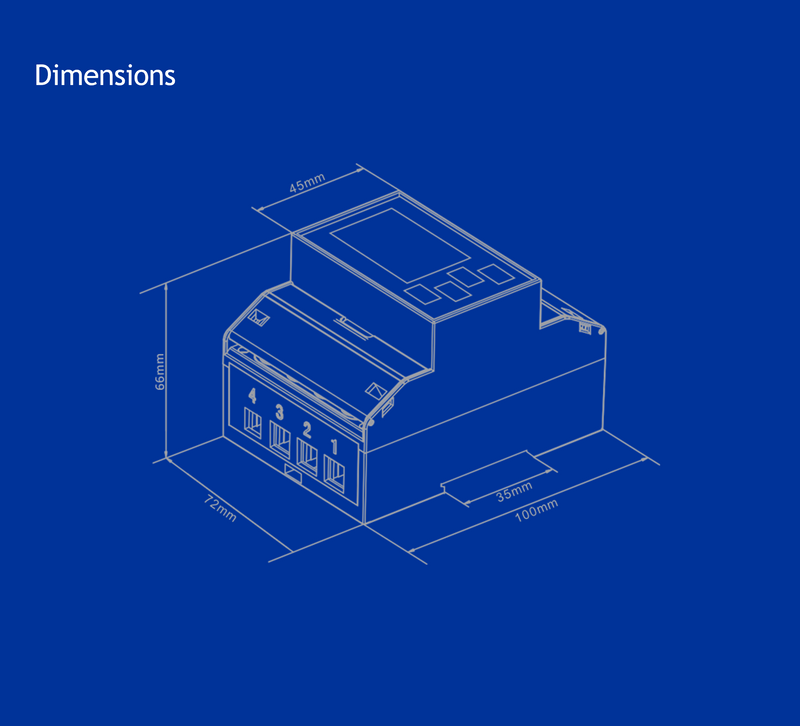

  • 4-DIN Module
  • Digital Backlit Display
  • Touch Screen Buttons

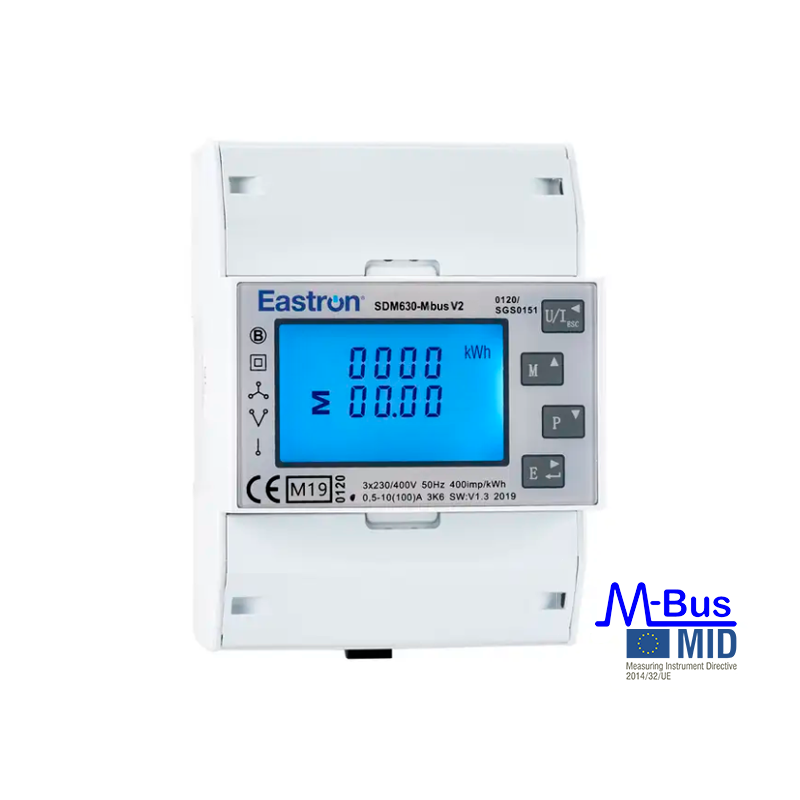

The SDM630-MBUS-MID is a Three Phase Digital Power Meter that measures a range of parameters in a 100A AC Circuit, removing the need for additional current transformers. This particular meter has proven to be very popular due to the detailed measurements it can provide, such as Power Factor, Max Demand Power & Hours Run. Unlike other meters available on the market, this model has Pulse and Modbus communications built in, eradicating the requirement of purchasing extra modules. The SDM630 Series is housed in a 4-DIN (72mm) case meaning it is compact and space-saving. This specific model measures Voltage, Voltage THD, Current, Max Demand Current, Current THD, Frequency, Power Factor, Max Demand Power, Active Power,  Reactive Power, Apparent Power, Total Active Energy, Import & Export Active Energy, Total Reactive Energy, Import & Export Reactive Energy.

We have invested in MID B&D certification for the SDM630-MOD-MID, this proves the accuracy and quality of the product and allows it to be used for Billing Applications. As of April 2016, MID-approved Meters will be the only legal option when the measurements are to be used for billing. All of our MID-approved meters are certified here in the UK.

Click Here For Product Datasheet

Click Here For User Manual

Click Here For Product Protocol
