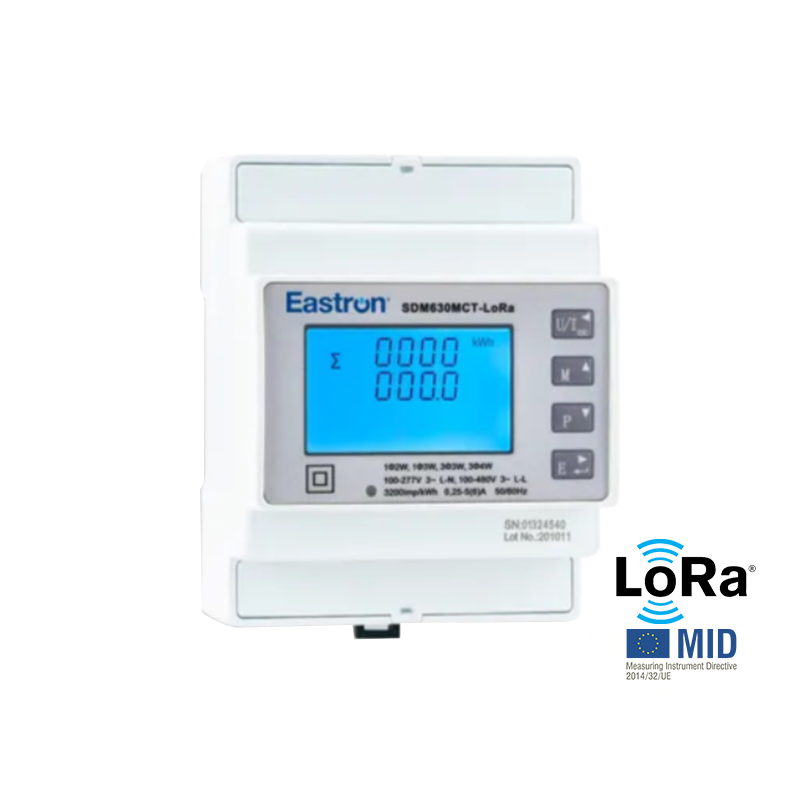

Eastron

SDM630MCT-LoRaWAN-MID

SKU: SDM630MCT-LoRaWAN-MID

Product Features:

  • MID Certified
  • LoRaWAN EU868
  • Class 0.5 accuracy
  • Single phase or three phase network compatible

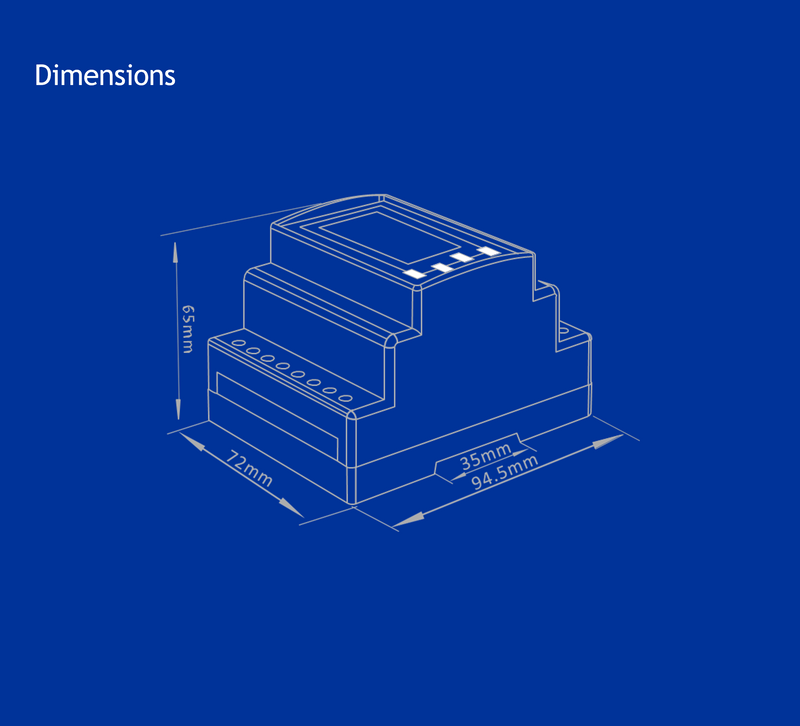

  • Four module DIN rail mounted
  • Highly visible backlit display
  • Simple menu navigation
  • Built in Pulsed outputs, 1 x Fixed & 1 x Configurable

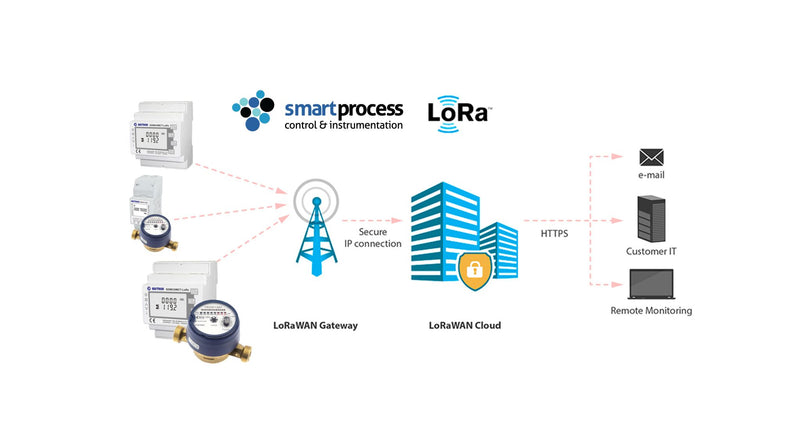

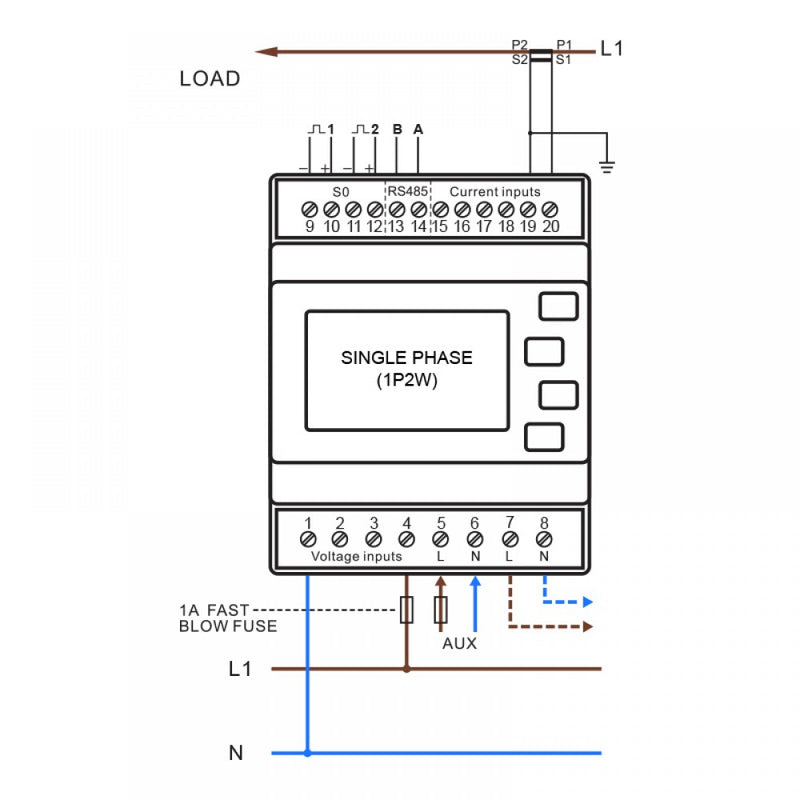

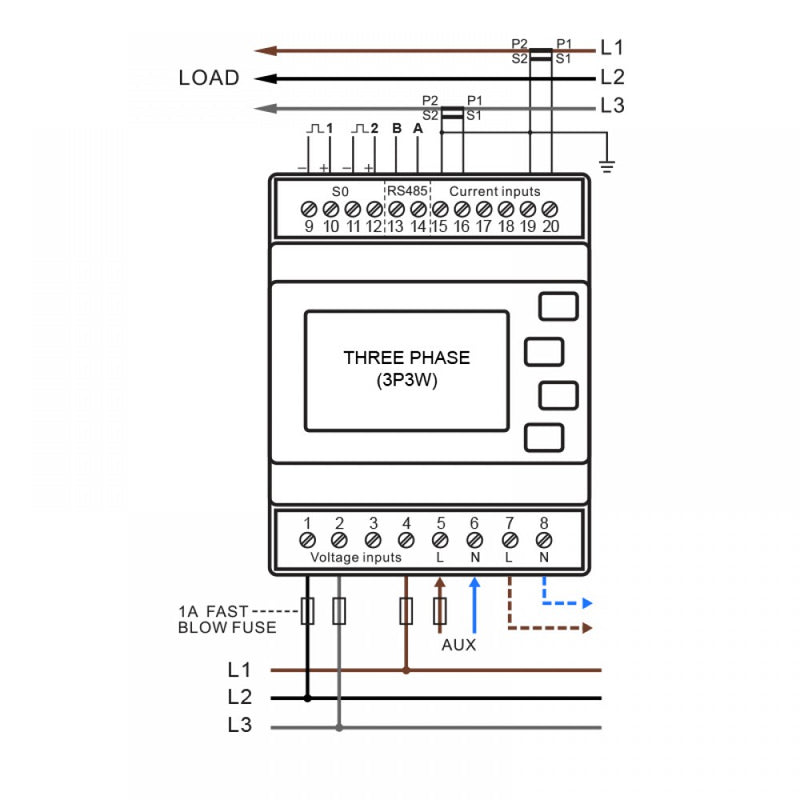

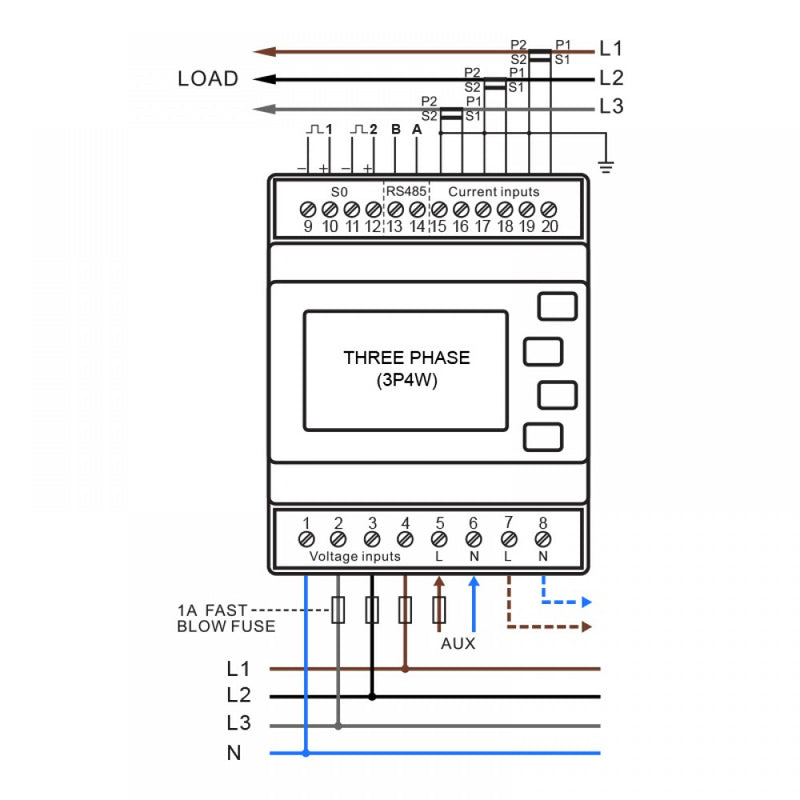

The SDM630MCT-LoRaWAN is an advanced multi-function three phase energy monitoring solution, with a built-in LoraWAN module that wirelessly transmits data to any LoRaWAN gateway. It measures and displays the characteristics of single phase, two wire(1p2w) , single phase three wire(1p3w), three phase three wire(3p3w,) and three, phase four wire(3p4w) supplies, including KWh, kVArh, kW, kVAr, kVA, PF, Frequency, Voltage, Current, dmd. THD etc. Energy is measured in terms of kWh, kVArh. Maximum demand current, can be measured over preset periods of up to 60minutes., The requisite current input(s) are obtained via current transformers (CT). This meter can be configured to work with a wide range of CTs, giving the unit a wide range of operation. The configuration is password protected.

Please get in touch for a personalised LoRaWAN solution to perfectly suit your project on 01268 773 422 or enquiry@smartprocess.co.uk

Click Here For Product Datasheet

Click Here For User Manual

Click Here For Product Protocol
