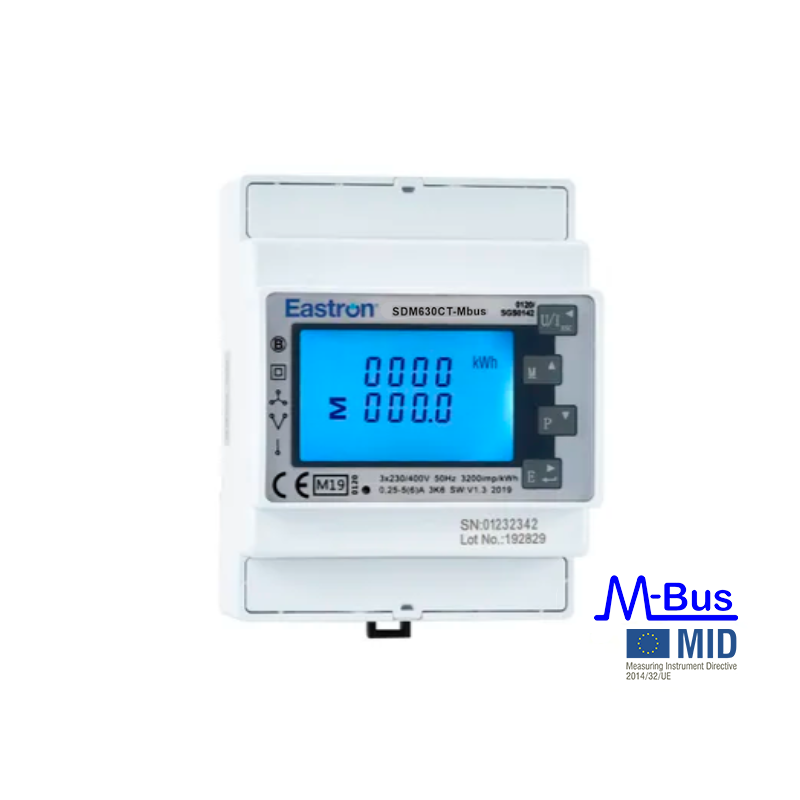

Eastron

SDM630MCT-Mbus-MID

SKU: SDM630MCT-Mbus-MID

£155

Excluding VAT. Shipping calculated at checkout.

Product Features:

  • MID B&D Approved - 0120/SGS0150

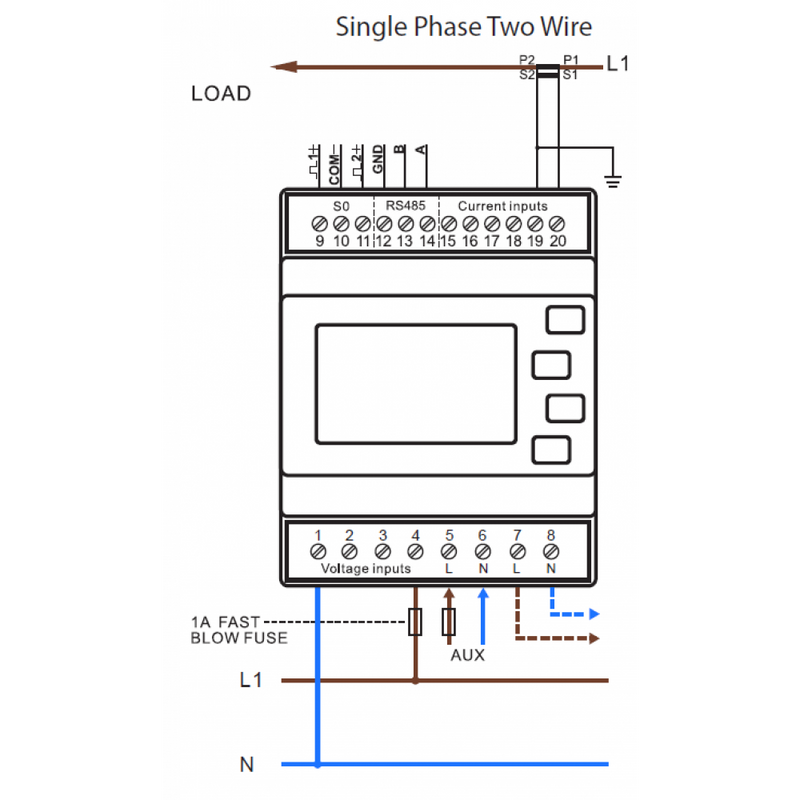

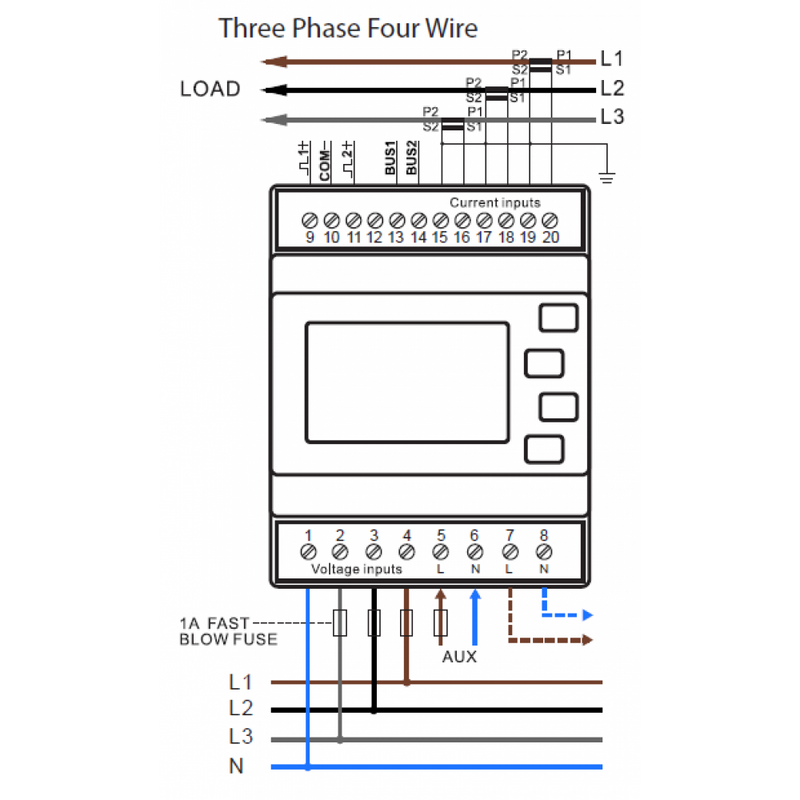

  • Single Phase (1P2W) or Three Phase (3P3W or 3P4W)
  • Multifunction Meter (16 different parameters)
  • CT Operated (1A or 5A secondary - settable)
  • 230/400V AC
  • Mbus Communications
  • Dual Pulse Outputs built-in

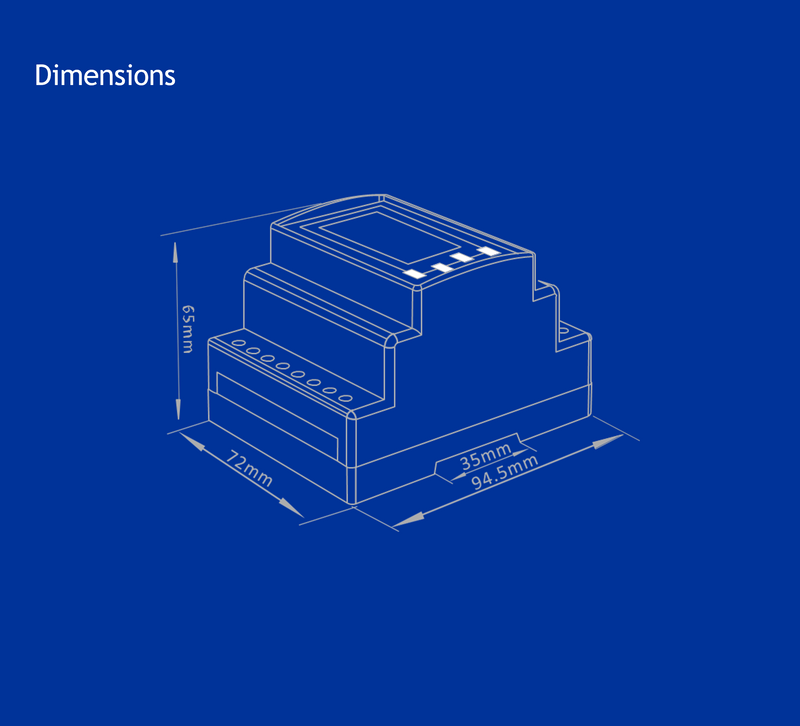

  • 4-DIN Module
  • Digital Backlit Display
  • Touch Screen Buttons

The SDM630MCT Series is a three-phase multifunction DIN-rail meter. It can measure and display the characteristic of 1p2w,3p3w, and 3p4w supplies, including voltage, current, power, active and reactive energy imported or exported. Energy is measured in terms of kWh, kVarh. Max demand current can be measured over preset periods of up to 60 minutes. In order to measure energy, the unit requires voltage and current inputs in addition to the supply required to power the meter. The required current inputs are obtained via current transformers. This meter can be configurable to work with a wide range of CTs, giving the unit a wide range of operations. The built-in interface provides pulse and Mbus outputs and the configuration is password protected.

SDM630 CT Series have been assessed and certified as meeting the requirements of EC Directive 2014/32/EU. The instrument traceable number is 0120/SGS0142

Click Here For Product Datasheet

Click Here For Product Protocol
