Smart Process & Control LTD

Bundle: SDM630MCT-MOD-MID & CT335 Three Phase Block CT


£145 £161

Shipping calculated at checkout.

Product Features:

Meter Information:

  • MID B&D Approved - 0120/SGS0150

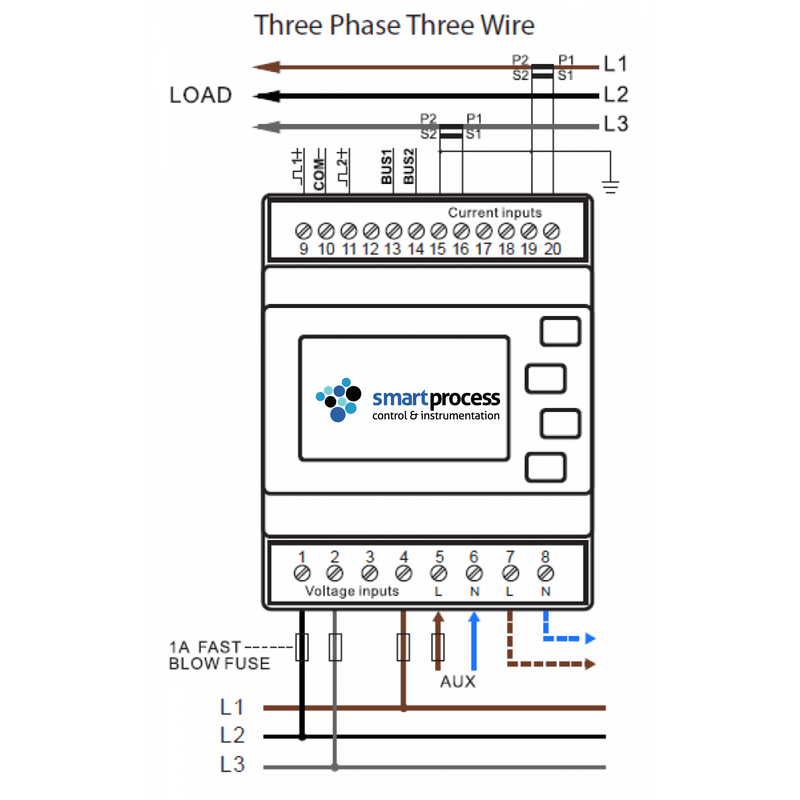

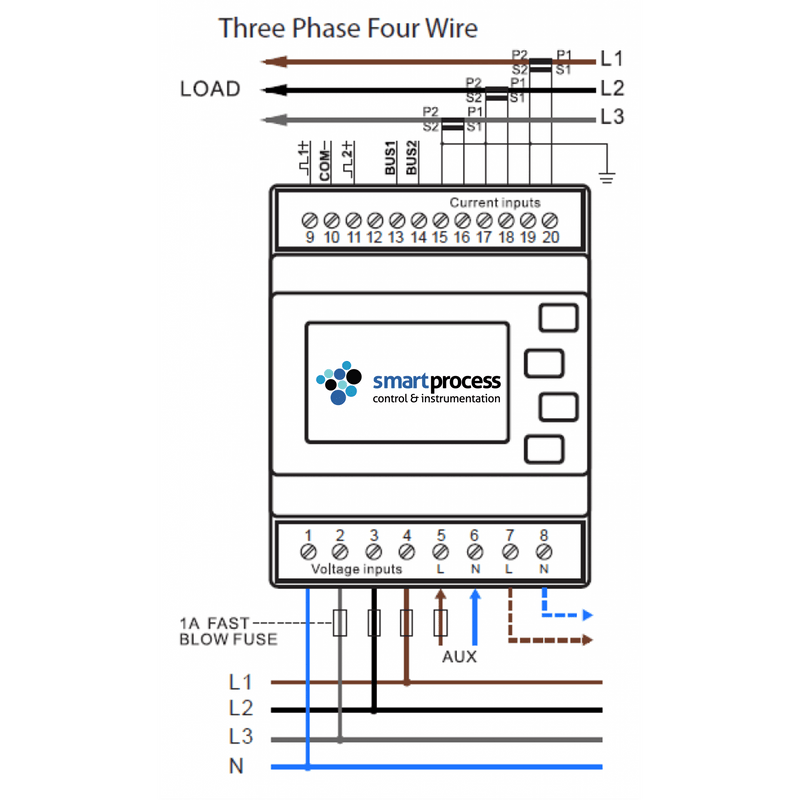

  • Single Phase (1P2W) or Three Phase (3P3W or 3P4W)
  • Multifunction Meter (16 different parameters)
  • CT Operated (1A or 5A secondary - settable)
  • 230/400V AC
  • RS485 Modbus RTU
  • Dual Pulse Outputs built-in
  • 4-DIN Module
  • Digital Backlit Display
  • Touch Screen Buttons

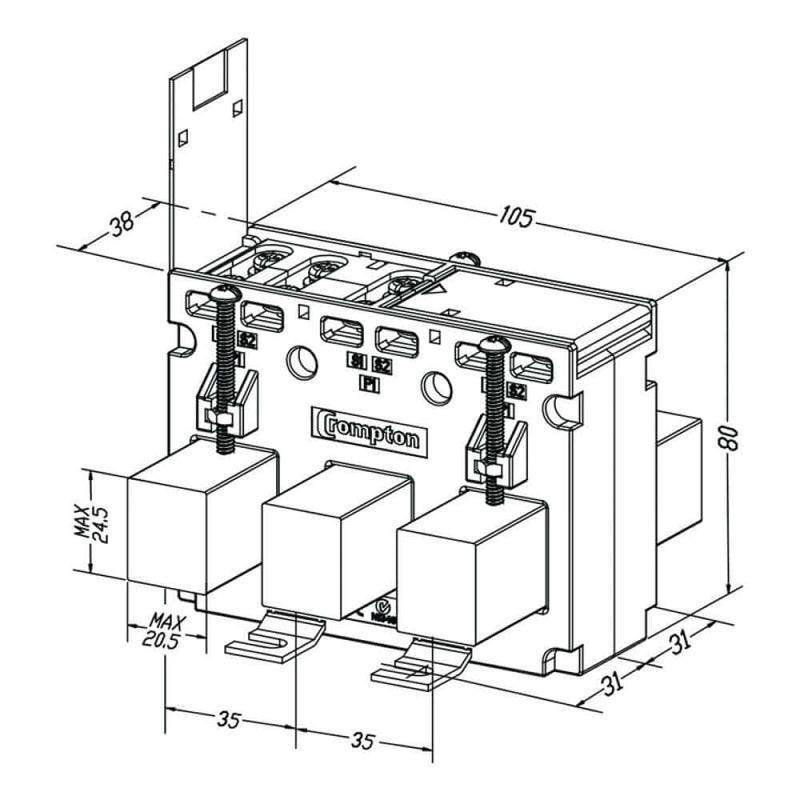

CT Features:

  • 35mm Centres
  • 21mm x 25mm Aperture
  • 100-250A Primary Current
  • 5A Secondary Current
  • Secondary M4 Screw Terminals
  • Accuracy Class 0.5, 1 or 3
  • Mounting Foot or DIN Rail Mounted

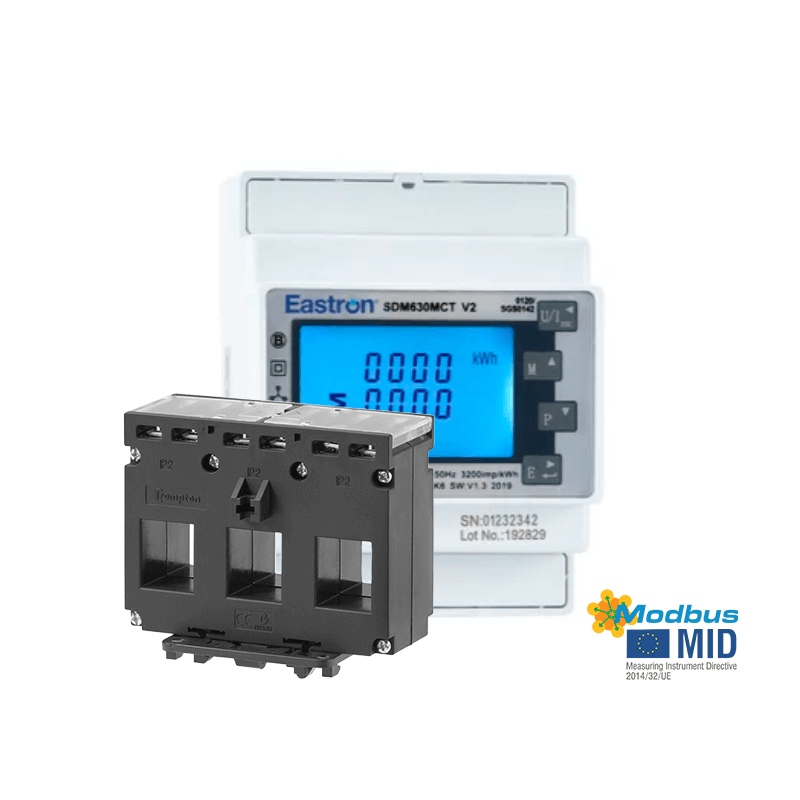

This bundle includes 1pc of Eastron SDM630MCT-MOD-MID and 1pcs of CT335 3 phase Current Transformer

You will need to confirm what Current Transformer ratio you require before checkout, as per the options section below

Meter Details:

Click Here For Product Datasheet

Click Here For User Manual

Click Here For Product Protocol
