- MID B&D Approved - 0120/SGS0150

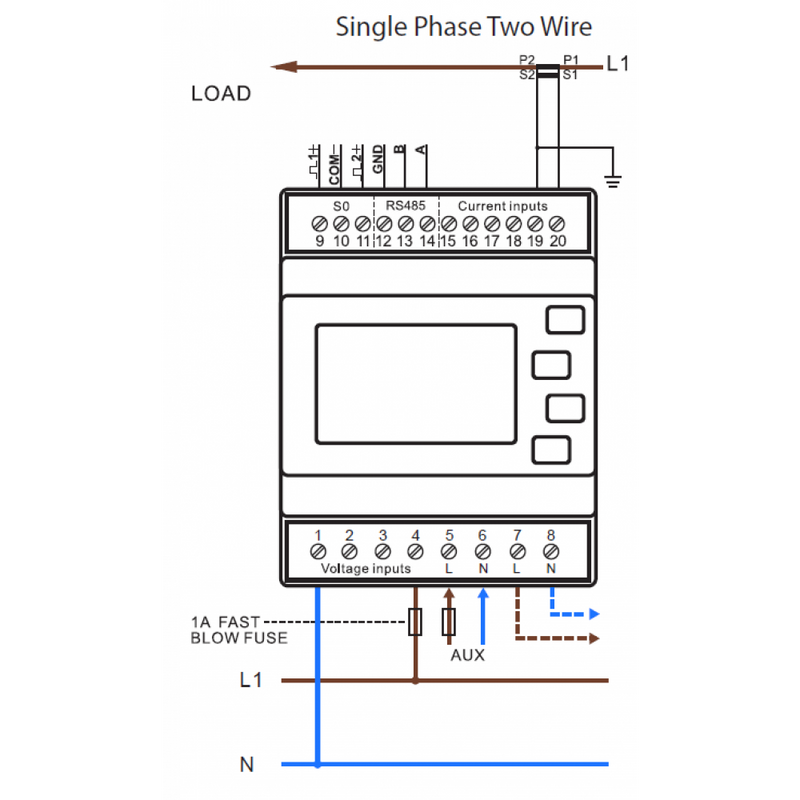

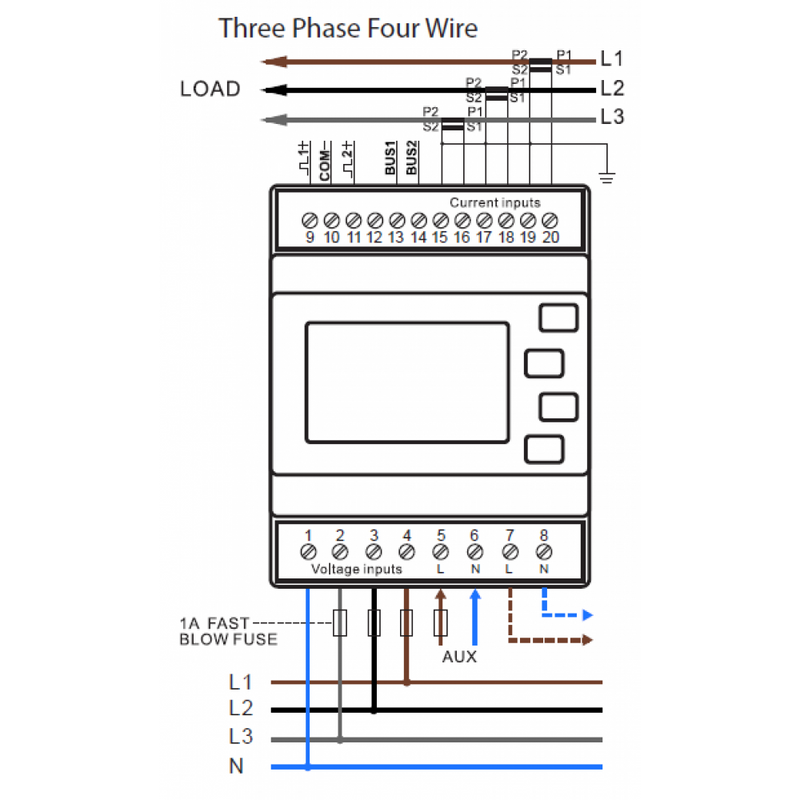

- Single Phase (1P2W) or Three Phase (3P4W)
- Multifunction Meter (16 different parameters)
- CT Operated (1A or 5A secondary - settable)
- 230/400V AC
- RS485 Modbus RTU
- Dual Pulse Outputs built-in

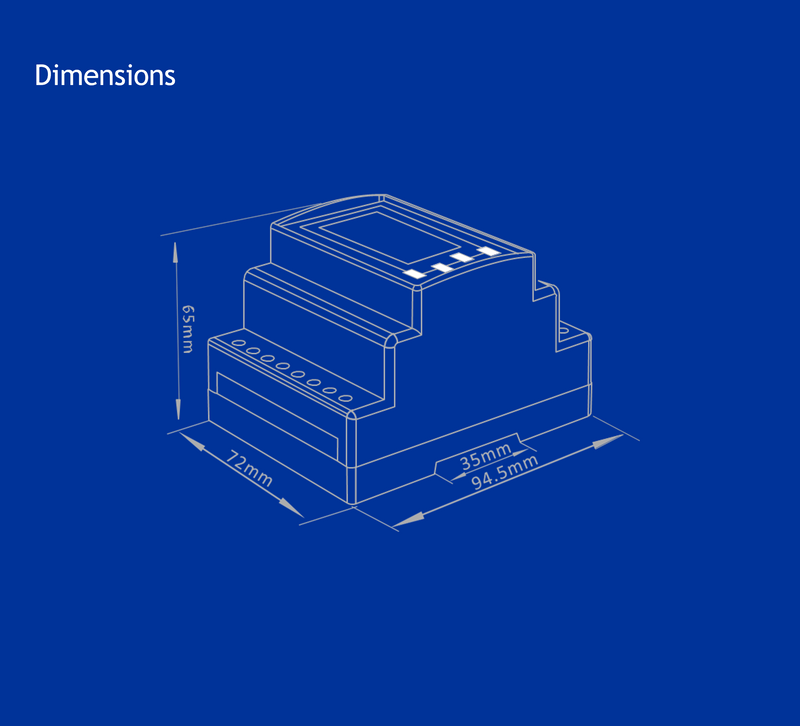

- 4-DIN Module
- Digital Backlit Display
- Touch Screen Buttons

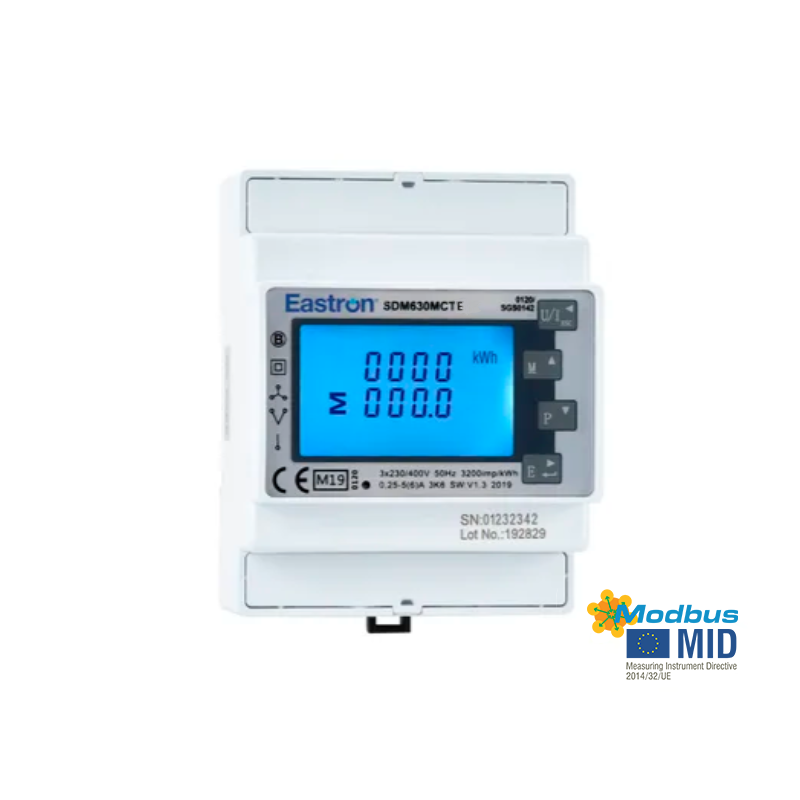

The SDM630MCT Series is a three-phase multifunction DIN-rail meter. It can measure and display the characteristic of 1p2w, and 3p4w supplies, including voltage, current, power, active and reactive energy imported or exported. Energy is measured in terms of kWh, kVarh. Max demand current can be measured over preset periods of up to 60 minutes. In order to measure energy, the unit requires voltage and current inputs in addition to the supply required to power the meter. The required current inputs are obtained via current transformers. This meter can be configurable to work with a wide range of CTs with 5A output, giving the unit a wide range of operations. The built-in interface provides pulse and RS485 Modbus or RTU outputs. All the configuration is password protected.
SDM630 CT Series have been assessed and certified as meeting the requirements of EC Directive 2014/32/EU and is MID approved, suitable for any billing applications. The instrument traceable number is 0120/SGS0142
