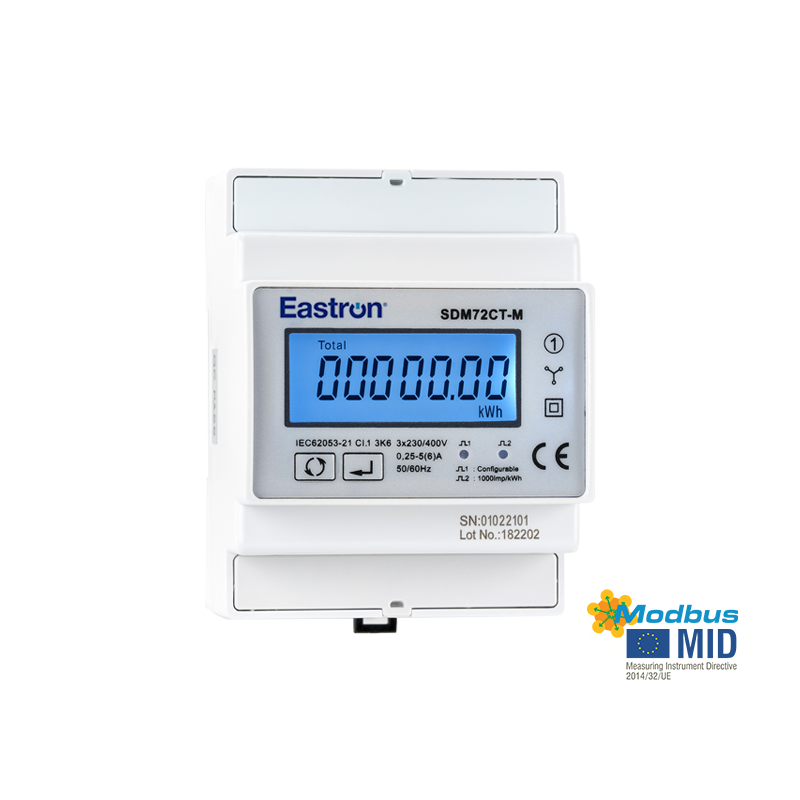

Eastron

SDM72CT-M

SKU: SDM72CT-M

£134

Excluding VAT. Shipping calculated at checkout.

PRODUCT FEATURES:

  • Single Phase (1P2W) or Three Phase (3P4W)
  • Multifunction Meter (up to 5 different read parameters)
  • CT Operated (1A or 5A secondary - settable)
  • 230/400V AC
  • RS485 Modbus RTU
  • 1 Set Pulsed Output

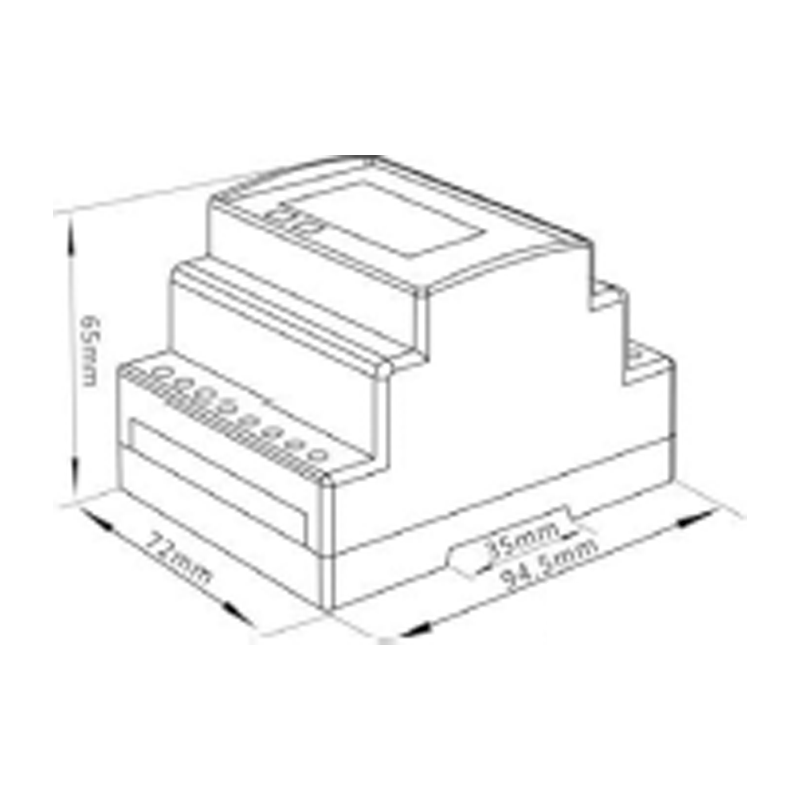

  • 4-DIN Module
  • Digital Backlit Display
  • Touch Screen Buttons

The SDM72CT-M Series is a cost effective DIN-rail meter that can measure and display the characteristic of 1p2w or 3p4w supplies, Import Active Energy (kWh), Export Active Energy (kWh), Total Active Energy (kWh), Power (W) and partial reactive energy (kWh). The required current inputs are obtained via current transformers. This meter can be configurable to work with a wide range of CTs with a 5A or 1A secondary. The built-in interface provides pulse and RS485 Modbus. All the configuration is password protected

CLICK HERE FOR PRODUCT DATASHEET

CLICK HERE FOR USER MANUAL
