Product Features:

  • 100A Direct Connected
  • Modbus RS485 communication
  • Total Active Energy (kWh)
  • Three Phase (3p4w)
  • 400V +/- 20% Measured Voltage
  • 1000imp/kWh Pulsed output
  • LCD Display 6+1= 999999.9
  • MID B+D certified

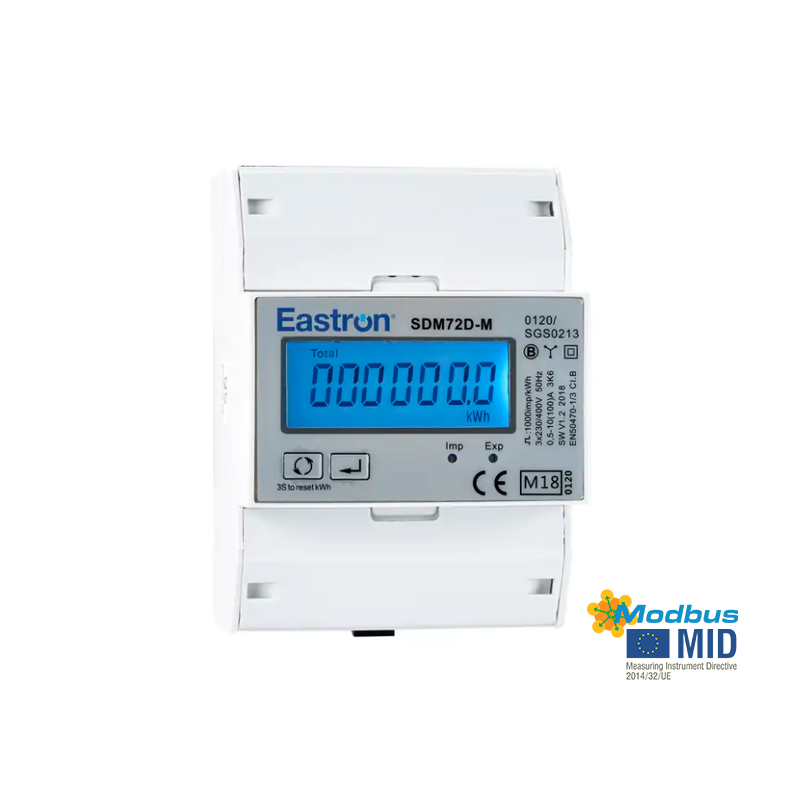

The SDM72D-M-MID v2 Digital Power Meter works directly connected to a maximum load 100A AC circuit. This meter has been MID B&D Certified by SGS UK, proving both it’s accuracy and quality. This certification allows this model to be used for any sub-billing applications. Unlike other alternatives, this meter is housed in a 4 Module DIN rail case, meaning it takes up very little space. The SDM72D measures and displays Total Active Energy and can be remotely monitored with a pulse collector or using the RS485 Modbus Comms. This meter is a great cost-effective solution for any 3ph application in which you are just interested in basic readings, such as total active energy.

Click Here For Product Datasheet

Click Here For User Manual

Click Here For Product Protocol
