Eastron

T24 Miniature Split Core Current Transformer 0.333mV (Milivolt Version)

SKU: T24-0.333mV

£30

Shipping calculated at checkout.

Product Features:

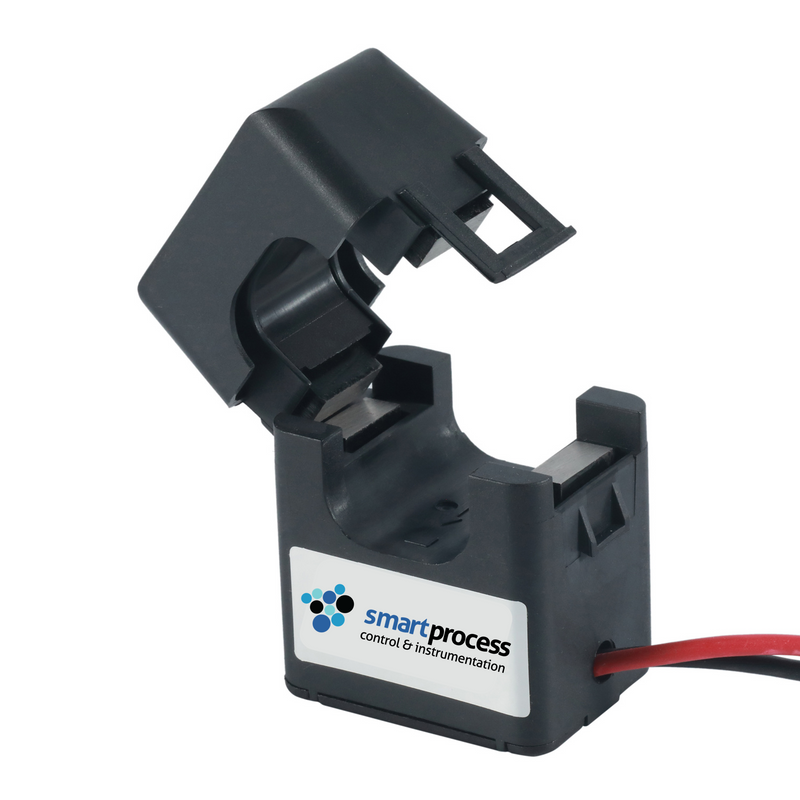

  • Split Core

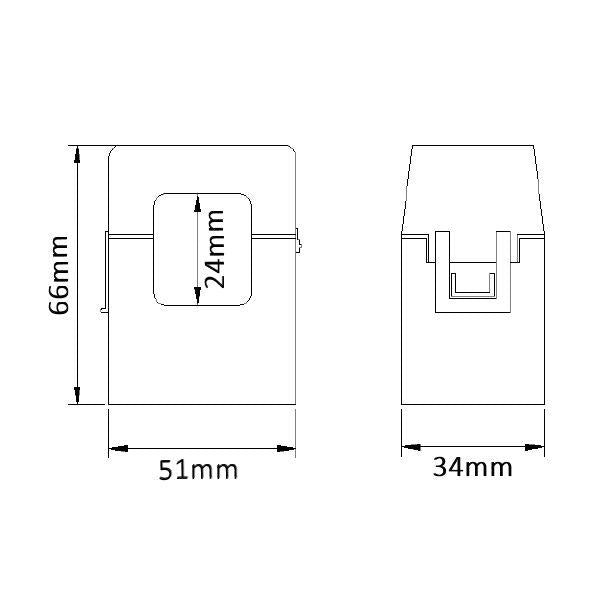

  • 24mm² Aperture
  • 100-300A Primary Current
  • 0.333mV Secondary Current
  • 1m Fly Lead (2.5mm Wire)
  • Accuracy Class 1

This particular T24 Split Core Current Transformer works in conjunction with any 0.333mV CT Operated Electricity Meters. The output on these CTs is in millivolts, as opposed to the traditional 5A secondary, which is much safer when installing. Due to the style of these Split Core Current transformers, you can easily install them without needing to break any conductors. You can use individual T24 CTs for Single Phase applications, you can also use 3pcs of these current transformers for Three Phase applications. The Aperture on this model accommodates 24mm² Cable. The T24 is ideal for applications such as Distribution systems, Generator sets, Control Panels and Switchgears.

Click Here For Product Datasheet
