Crompton

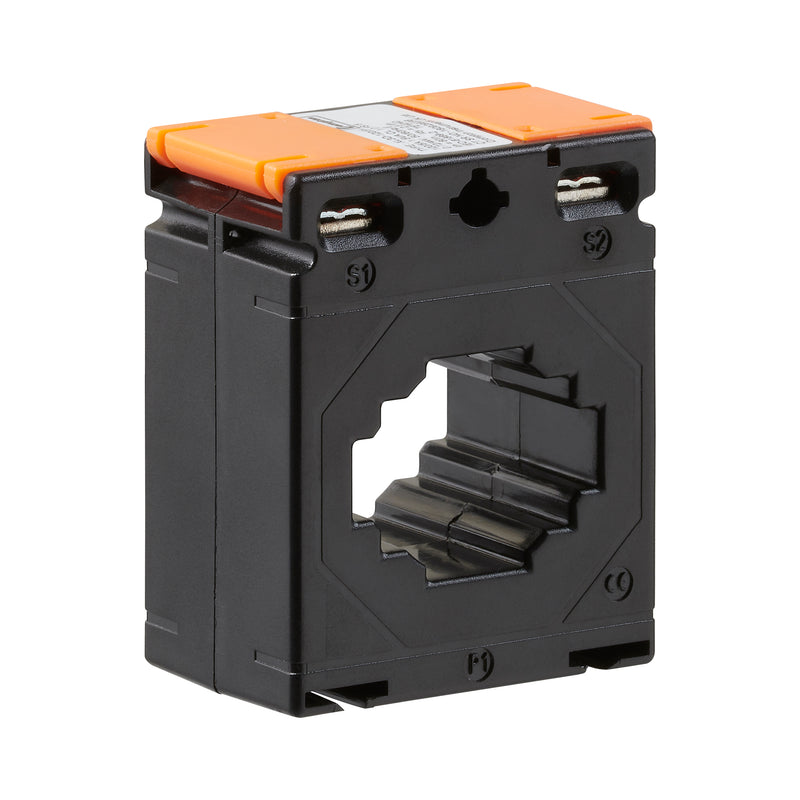

XL3D Single phase CT 100-800A Primary Input/ 5A Secondary Output

SKU: XL3D

£25.20

Shipping calculated at checkout.

New M63N Replacement

Product Features:

  • 31mm Aperture

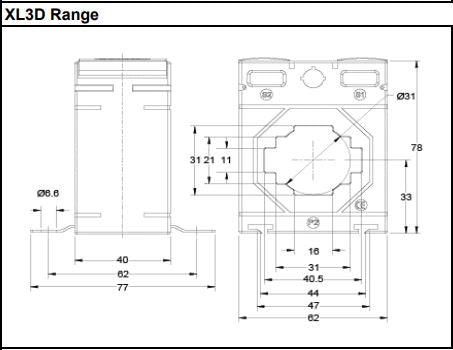

  • Cable or Busbar Aperture40.5 x 11 mm - 31 x 21 mm
  • 100-800A Primary Current
  • 5A Secondary Current
  • Secondary M4 Screw Terminals
  • Accuracy Class 0.5, 1 or 3

The XL3D Range of Solid Core Current Transformers work in conjunction with any 5A CT Operated Electricity Meters. You can use individual XL3D CTs for Single Phase applications, you can also use three of these current transformers for Three Phase applications. The XL3D is ideal for applications such as Distribution systems, Generator sets, Control Panels and Switchgear.

Click Here For Product Datasheet
