XL4D Single Phase CT 100-1000A Primary Input/ 5A Secondary Output



Shipping calculated at checkout.

New M93L Replacement

Product Features:

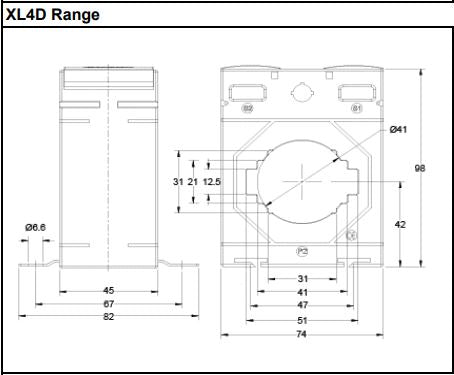

  • Cable or Busbar Aperture51 x 12.5 mm - 41 x 21 mm - 31 x 31 mm
  • 100-1000A Primary Current
  • 5A Secondary Current
  • Secondary M4 Screw Terminals
  • Accuracy Class 0.5, 1 or 3

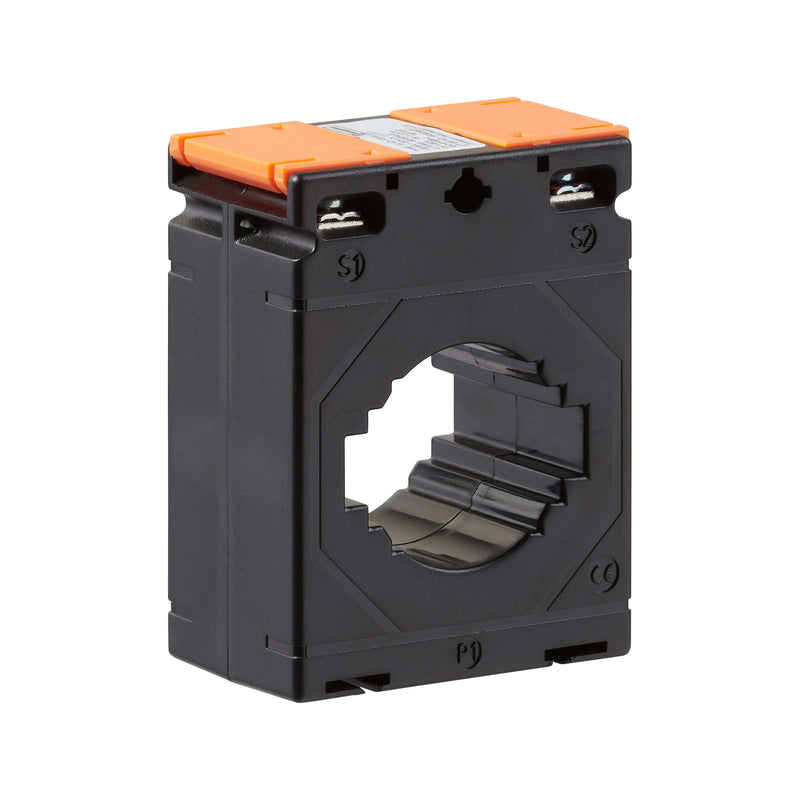

The XL4D Range of Solid Core Current Transformers work in conjunction with any 5A CT Operated Electricity Meters. You can use individual XL4D CTs for Single Phase applications, you can also use three of these current transformers for Three Phase applications. The XL4D is ideal for applications such as Distribution systems, Generator sets, Control Panels and Switchgear.

Click Here For Product Datasheet
