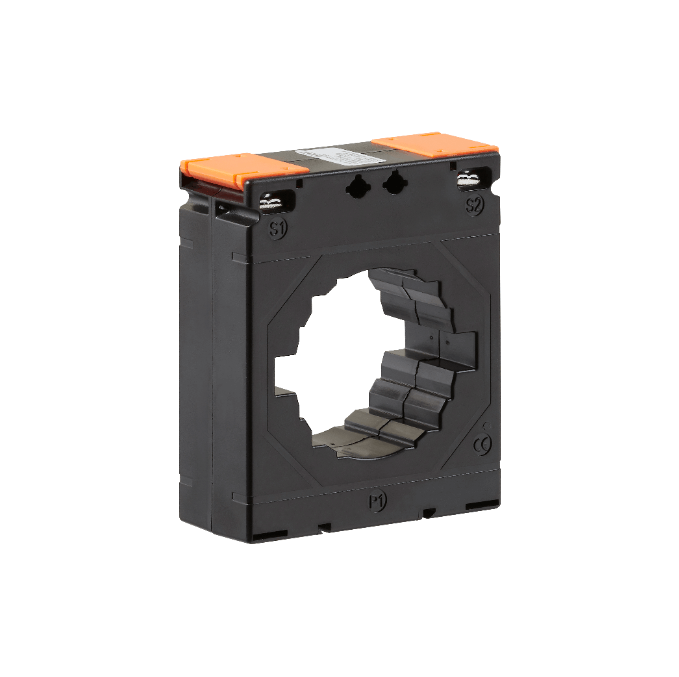

XL7B Single Phase CT 200-2000A Primary Input/ 5A Secondary Output



Shipping calculated at checkout.

New M93S & M93R Replacement

Product Features:

  • 65mm Aperture

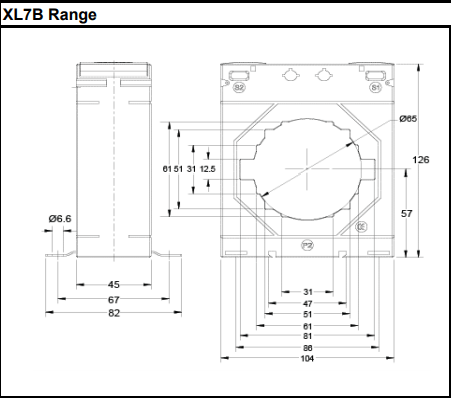

  • Cable or Busbar Aperture: 81 x 12.5 mm - 61 x 21 mm - 31 x 61 mm
  • 200-2000A Primary Current
  • 5A Secondary Current
  • Secondary M4 Screw Terminals
  • Accuracy Class 0.5, 1 or 3

The XL7B Range of Solid Core Current Transformers work in conjunction with any 5A CT Operated Electricity Meters. You can use individual XL7B CTs for Single Phase applications, you can also use three of these current transformers for Three Phase applications. The XL7B is ideal for applications such as Distribution systems, Generator sets, Control Panels and Switchgear.

Click Here For Product Datasheet
