- MID B&D Approved - 0120/SGS0198
- Single Phase (1P2W)
- 100A AC
- 230V AC
- RS485 Modbus RTU
- Dual Pulse Outputs
- 2-DIN Module
- Digital Backlit Display
- 4 Measurement Modes for kW Readings

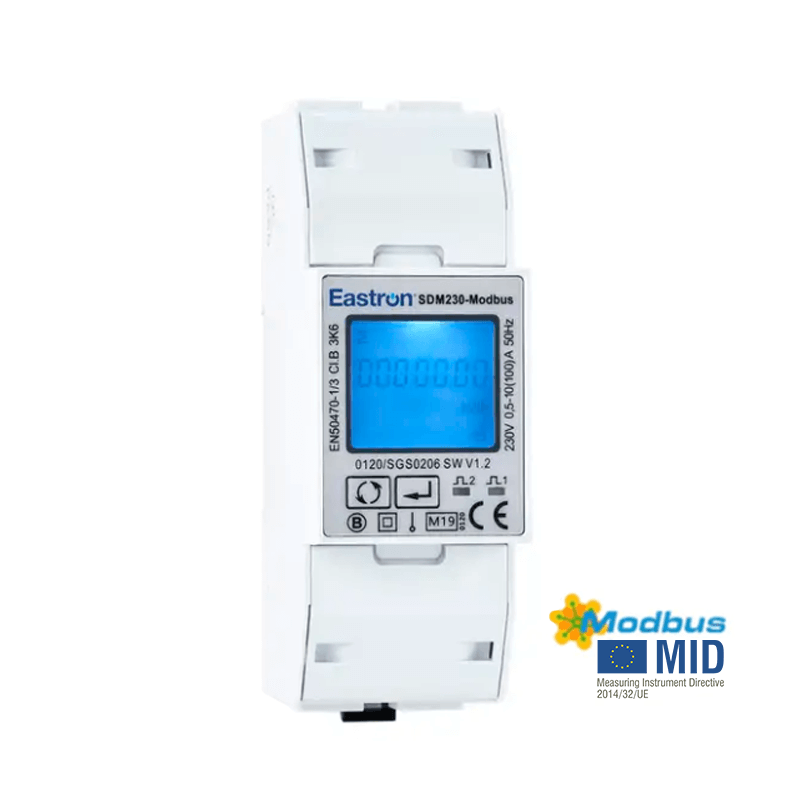

SDM230 series is an advanced digital single phase multi-function energy meter, which measures up to 100A direct load. The unit measures active energy, reactive energy, current, voltage, power, power factor, frequency, demand, etc. Bi-directional measurement makes this unit an ideal choice for Solar PV measurement. Also a favourite for EVC infrastructures. A remote communication port is provided, RS485 Modbus RTU and Communication parameters are password protected in setup mode. User can check data and set up the meter via the buttons on the front panel. This Series has been assessed and certified as meeting the requirements of EC Directive 2004/22/EC. The EC Type Examination Certificate Number is 0120/SGS0206.
